2149925 OBO BETTERMANN SENS. QUICK ALQ M25 ALU

Reference: ALQ M25

Code: 2149925

Manufacturer: OBO BETTERMANN

Description:

SENS. QUICK ALQ M25 ALU

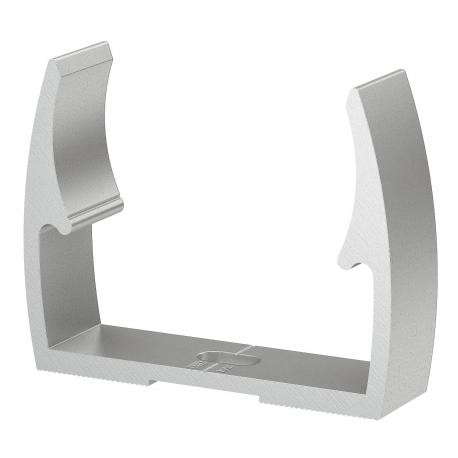

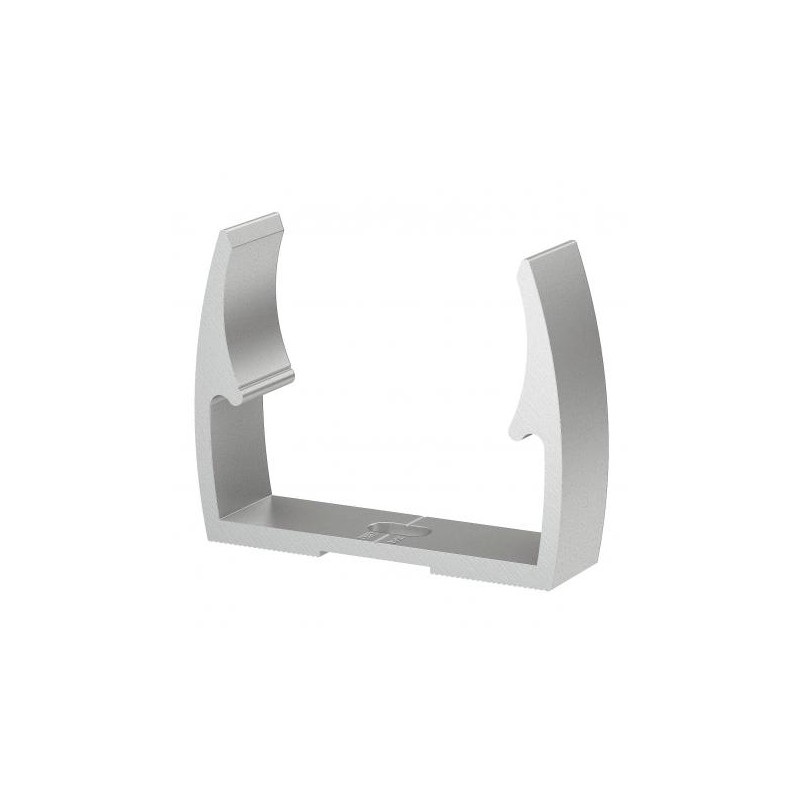

Quick clip, aluminium. OBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.Slot for side alignment during mounting with wood screw or knock-in anchor.Recommended fastening spacing 50−60 cm.

Categories:

  • Installation material for cables and tubes > Tube clamp
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 196,98 €

Unit Price: 1,9698 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Clamping range D, max.25 mm
Clamping range D, min.25 mm
Closedno
CO2 Footprint (GWP) Cradle-to-Gate0,1856 kg CO2e / 1 Piece
DimensionM25
Dimension A31 mm
Dimension B18 mm
Dimension E5,1 mm
Dimension F9,5 mm
Dimension H30 mm
Dimension h22 mm
Expandableno
Fastening typeScrew hole
Halogen-freeno
MaterialAluminium
Nominal size25
Number of cables/pipes1
Pull-out value90 N
UV-resistantyes
With inlayno
