OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANNALQ M20 2149920 OBO BETTERMANN SENS. QUICK ALQ M20 ALU

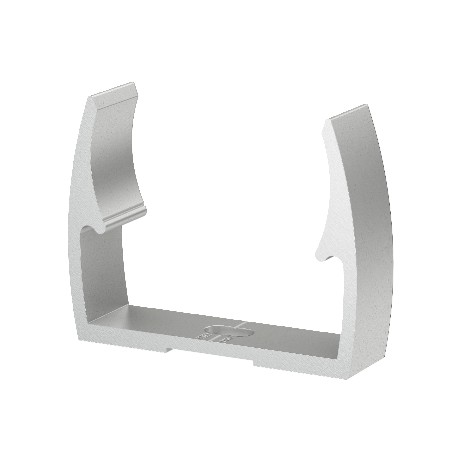

OBO BETTERMANN ALQ M20 2149920 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ALQ M20 2149920 OBO BETTERMANN SENS. QUICK ALQ M20 ALU

Reference: ALQ M20

Code: 2149920

Manufacturer: OBO BETTERMANN

Description:

SENS. QUICK ALQ M20 ALU
Quick ALQ M20, M20 Aluminum, Alu Clamp,
OBO-Quick clamp, aluminum. OBO Quick Clamp, type ALQ M, for all metric aluminum tube systems, and insulation tubes for light and heavy loads. Suitable for housing OBO's aluminum tube system. Tube centerers allow for optimal tube placement and rotate the clamps into the right position. Elongated hole to make a lateral adjustment during assembly by means of lag screws or plugs. Recommended fixing distance: 50-60 cm.

Categories:

  • Installation material for cables and tubes > Tube clamp
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 194,00 €

Unit Price: 1,94 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

OBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium.Pipe centring aids allow optimum attachment of the pipe and automatically turn the clip into the correct position.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50-60 cm

ETIM for 2149920 Cable and tube fixings (EC000368)

Feature nameClosed (EF001228)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valueAluminium
Feature nameConnectable (EF006169)
Feature valueNo
Feature nameMax. number of tubes (EF001225)
Feature value1
Feature nameType of fastening (EF002442)
Feature valueScrew hole
Feature nameWith inlay (EF005913)
Feature valueNo
Feature nameHalogen free (EF000025)
Feature valueNo

DATASHEET - PDF

Title
Size
Type
2149920 OBO BETTERMANN SENS. QUICK ALQ M20 ALU
48 Kbytes
PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN
31 Mbytes
PDF CATALOGUE FASTENING MATERIALS OBO EN
18 Mbytes
