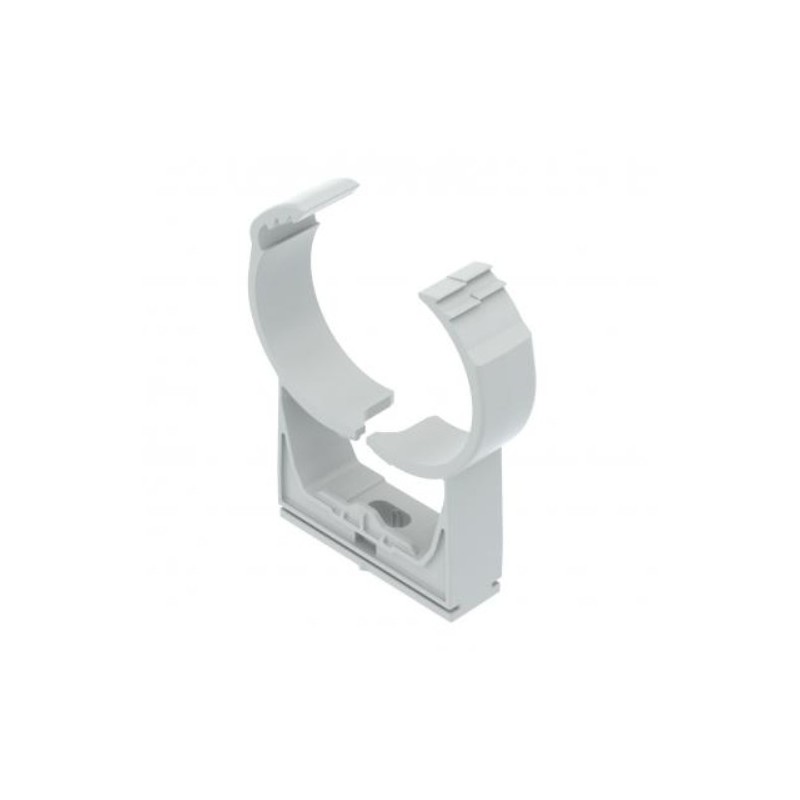

2147324 OBO BETTERMANN ProQuick Clamp, Light Grey
2147324
OBO BETTERMANN
25
ProQuick Clamp, Light Grey
proQuick clip, light grey. Highly stressable clip for accepting plastic or metal electrical and sanitary pipes as well as the electrical installation pipe Quick pipe. Universal fastening options on walls, ceilings and steel constructions, both indoors and outdoors. Flexible clamping range of several millimetres. Toolless pipe mounting. Connectable to each other to Ø 32 mm, also with the OBO Quick or Multi Quick clip. For variable distances and clip quantity mountable on a profile rail.
VBS Connection and fastening systems - OBO BETTERMANN > VBS Clamps starQuick - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Breaking load | 1,2 kN |
|---|---|
| Clamping range D, max. | 50 mm |
| Clamping range D, min. | 44 mm |
| Closed | yes |
| Colour | Light grey; RAL 7035 |
| Dimension | 44-50mm |
| Expandable | yes |
| Fastening type | Screw hole |
| Halogen-free | yes |
|---|---|
| Material | Polyamide |
| Nominal size | 45-50 |
| Number of cables/pipes | 1 |
| Pipe/cable diameter, max. | 50 mm |
| Pipe/cable diameter, min. | 44 mm |
| UV-resistant | yes |
| With inlay | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
