OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANN2056 E 44 FT 1174630 OBO BETTERMANN CLAMP ON PROFILE 2056 E 44 FT

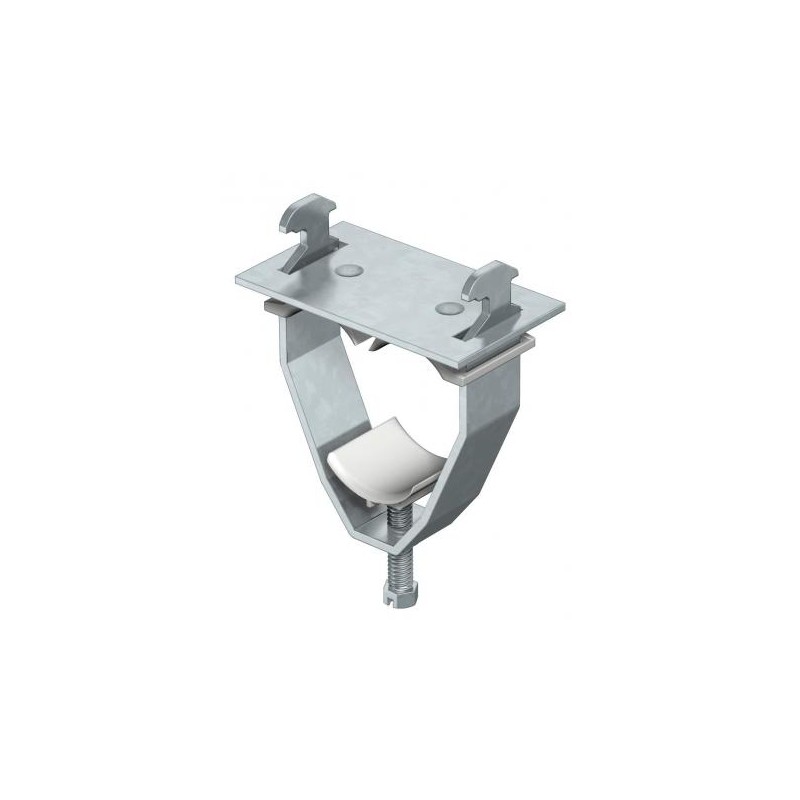

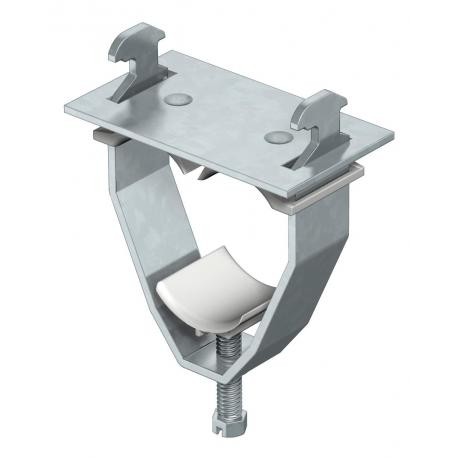

OBO BETTERMANN 2056 E 44 FT 1174630 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2056 E 44 FT 1174630 OBO BETTERMANN CLAMP ON PROFILE 2056 E 44 FT

Reference: 2056 E 44 FT

Code: 1174630

Manufacturer: OBO BETTERMANN

Description:

CLAMP ON PROFILE 2056 E 44 FT
Clamp clip, hammer-head base, 3x single-wire connection. Clip element, bolt and lock plate made of hot-dip galvanised steel, pressure and counter-trough made of polypropylene, halogen-free, light grey RAL 7035.Delivered complete with lock plate and counter-troughs.

Categories:

  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 408,96 €

Unit Price: 16,3583 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Cable diameter, max.44 mm
Cable diameter, min.40 mm
Clamping range D, max.44 mm
Clamping range D, min.40 mm
CO2 Footprint (GWP) Cradle-to-Gate0,6846 kg CO2e / 1 Piece
Dimension40-44mm
Dimension A109 mm
Dimension B95 mm
Dimension H143 mm
for rail with slot width (with interval), max.17 mm
for rail with slot width (with interval), min.16 mm
Halogen-freeyes
Impact-resistantno
MaterialSteel
Material additionSteel
Material of counter-troughPlastic
Material of troughPlastic
Material quality of troughPolypropylene
Max. Tightening torque5 Nm
Mounting typeProfile rail
Number of cables/pipes3
SurfaceHot-dip galvanised
Surface additionhot galvanised
With counter-troughyes
With metal troughno
With plastic troughyes

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN
31 Mbytes
PDF CATALOGUE FASTENING MATERIALS OBO EN
18 Mbytes
