OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANN2046820 OBO BETTERMANN CURVE 40 FT

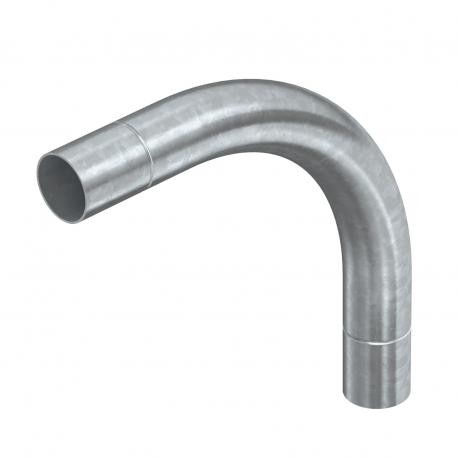

OBO BETTERMANN SBN40 FT 2046820 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

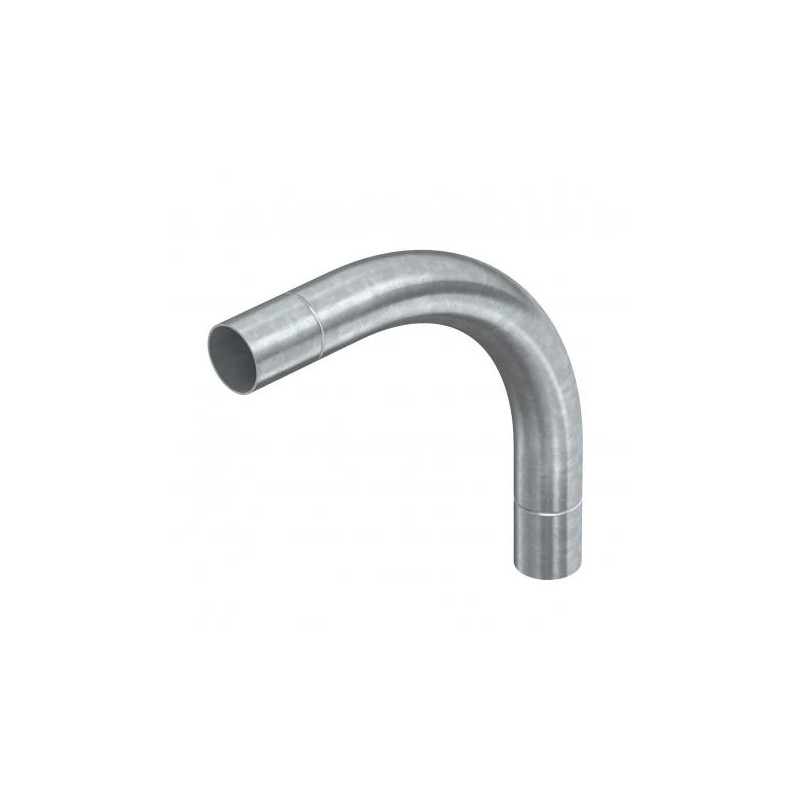

2046820 OBO BETTERMANN CURVE 40 FT

Reference: SBN40 FT

Code: 2046820

Manufacturer: OBO BETTERMANN

Description:

CURVE 40 FT
Hot-dip galvanised steel bend, without thread. 90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.

Categories:

  • Installation pipes/cable protection tubes > Bend for installation tubes
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 239,31 €

Unit Price: 15,954 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Angle of the bend90 °
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate2,0606 kg CO2e / 1 Piece
DimensionØ40mm
Dimension A87,2 mm
Dimension B279 mm
Dimension d40,7 mm
Dimension D43,7 mm
Dimension l50 mm
Dimension m (mm)M40
Dimension R170 mm
Dimension t1,5 mm
Flexibleno
For nominal pipe diameter40 mm
Halogen-freeno
MaterialSteel
Permitted temperature range, max.400 °C
Permitted temperature range, min.-45 °C
Polished surfaceno
SurfaceHot-dip galvanised
Two-partno
Version forConnector
With inspection opening and lidno
With sleeveyes

DATASHEET - PDF

Title
Size
Type
2046820 OBO BETTERMANN CURVE 40 FT
46 Kbytes
PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN
31 Mbytes
PDF CATALOGUE FASTENING MATERIALS OBO EN
18 Mbytes
