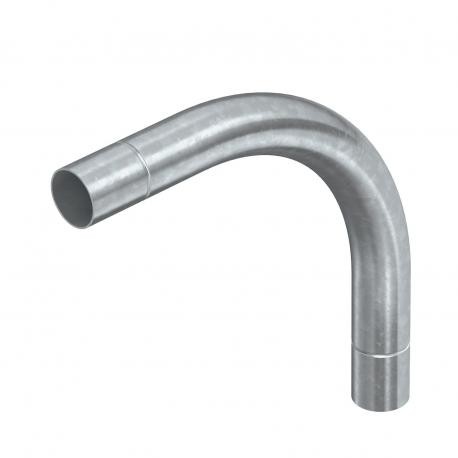

2046819 OBO BETTERMANN CURVE 32 FT
SBN32 FT
2046819
OBO BETTERMANN
20
CURVE 32 FT

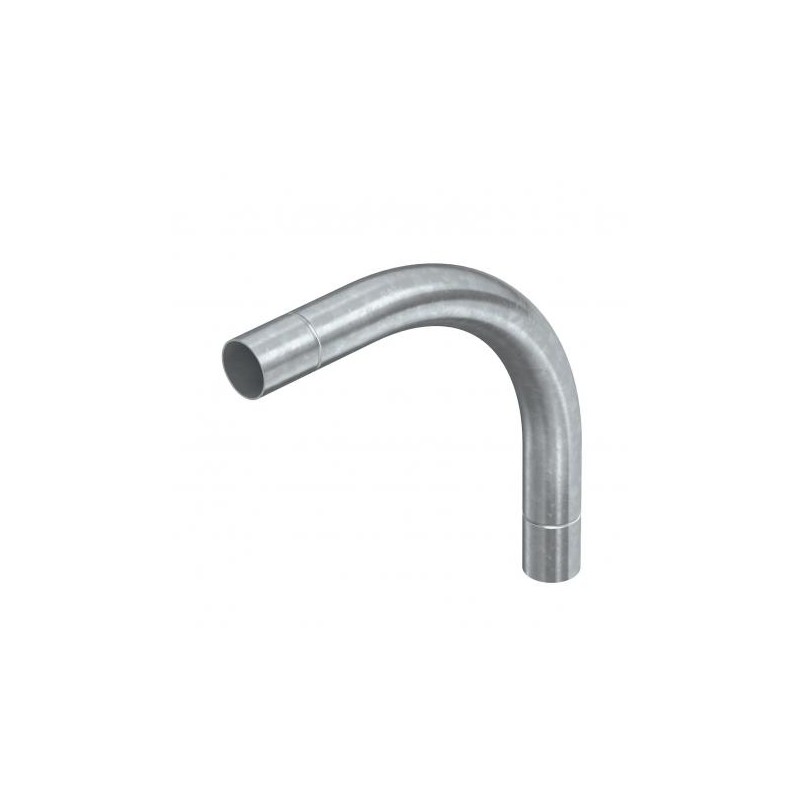

Hot-dip galvanised steel bend, without thread. 90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
Installation pipes/cable protection tubes > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Angle of the bend | 90 ° |
|---|---|
| Brushed surface | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4384 kg CO2e / 1 Piece |
| Dimension | Ø32mm |
| Dimension A | 86,5 mm |
| Dimension B | 254 mm |
| Dimension D | 35,1 mm |
| Dimension d | 32,7 mm |
| Dimension l | 40 mm |
| Dimension m (mm) | M32 |
| Dimension R | 150 mm |
| Dimension t | 1,2 mm |
| Flexible | no |
|---|---|
| For nominal pipe diameter | 32 mm |
| Halogen-free | no |
| Material | Steel |
| Permitted temperature range, max. | 400 °C |
| Permitted temperature range, min. | -45 °C |
| Polished surface | no |
| Surface | Hot-dip galvanised |
| Two-part | no |
| Version for | Connector |
| With inspection opening and lid | no |
| With sleeve | yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
| 2046819 OBO BETTERMANN CURVE 32 FT | 46 Kbytes |
|
