2046809 OBO BETTERMANN CURVE 20 G

Reference: SBN20 G

Code: 2046809

Manufacturer: OBO BETTERMANN

Description:

CURVE 20 G

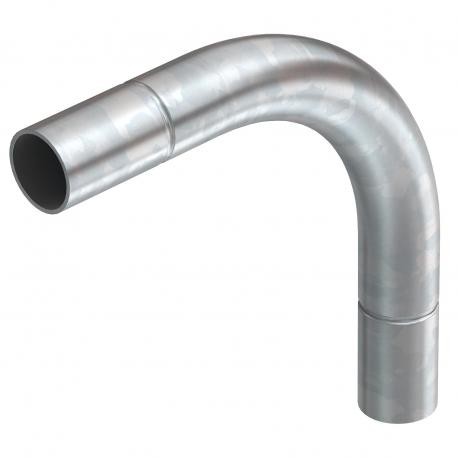

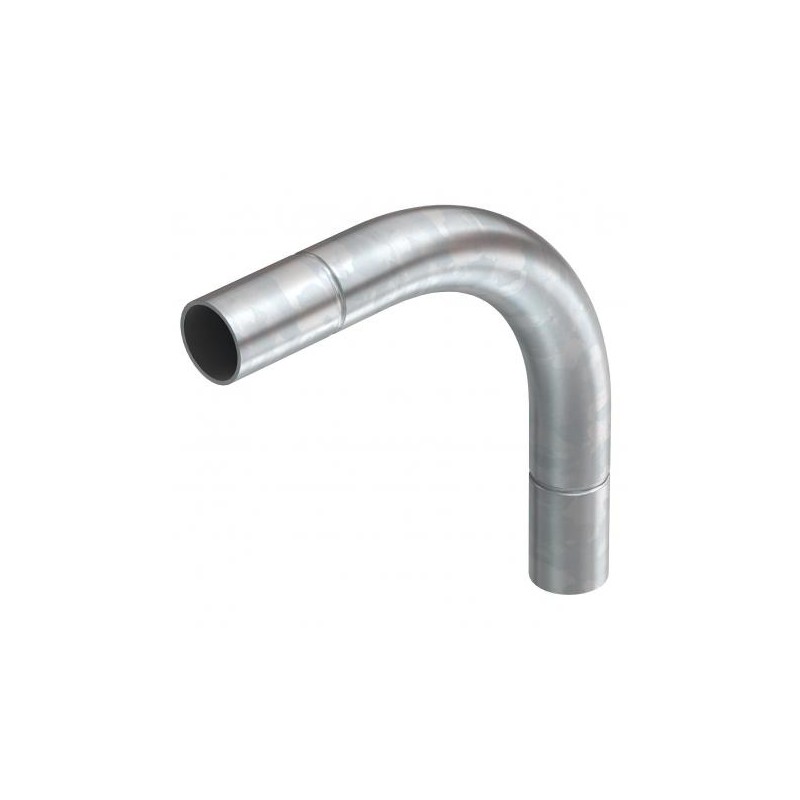

Electrogalvanised steel bend, without thread. 90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.

Categories:

  • Installation pipes/cable protection tubes > Bend for installation tubes
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 107,61 €

Unit Price: 4,3046 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Angle of the bend90 °
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate0,3913 kg CO2e / 1 Piece
DimensionØ20mm
Dimension A53,7 mm
Dimension B155 mm
Dimension d20,6 mm
Dimension D22,6 mm
Dimension l30 mm
Dimension m (mm)M20
Dimension R90 mm
Dimension t1 mm
Flexibleno
For nominal pipe diameter20 mm
Halogen-freeno
MaterialSteel
Polished surfaceno
SurfaceElectrogalvanized
Two-partno
Version forConnector
With inspection opening and lidno
With sleeveyes
