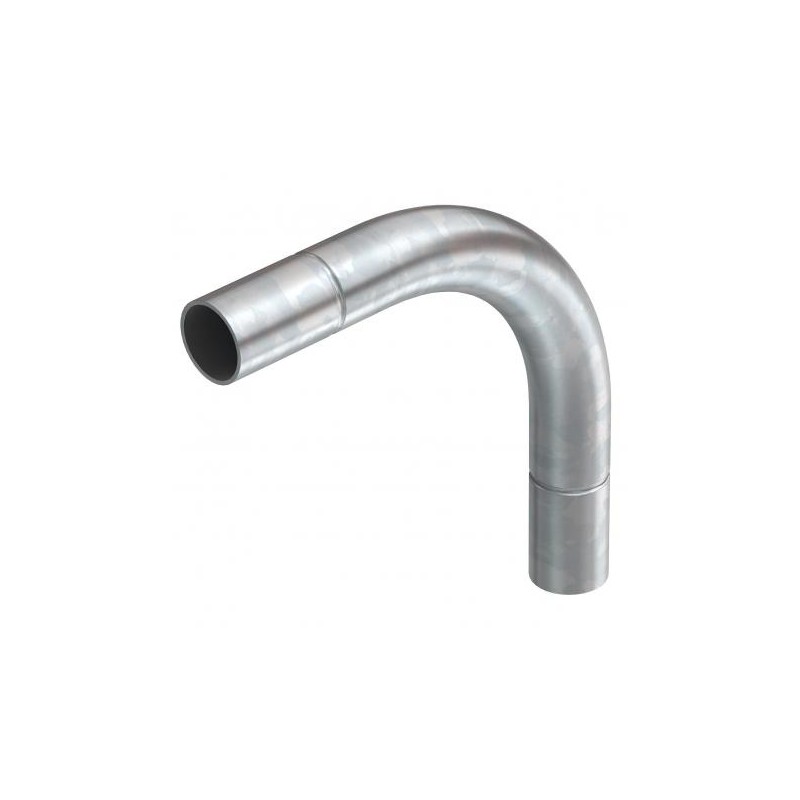

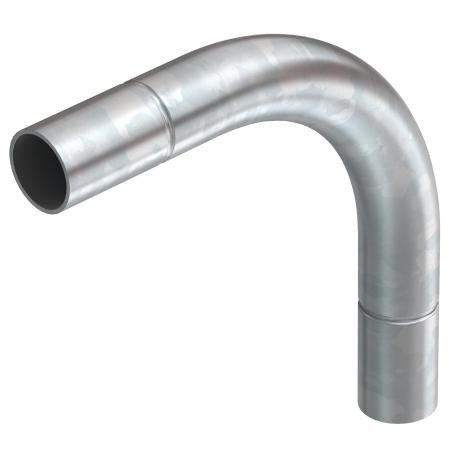

2046808 OBO BETTERMANN CURVE 16 G
SBN16 G
2046808
OBO BETTERMANN
15
CURVE 16 G
Electrogalvanised steel bend, without thread. 90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
Installation pipes/cable protection tubes > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Angle of the bend | 90 ° |
|---|---|
| Brushed surface | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2206 kg CO2e / 1 Piece |
| Dimension | Ø16mm |
| Dimension A | 43,7 mm |
| Dimension B | 103 mm |
| Dimension D | 18,6 mm |
| Dimension d | 16,6 mm |
| Dimension l | 25 mm |
| Dimension m (mm) | M16 |
| Dimension R | 50 mm |
| Dimension t | 1 mm |
|---|---|
| Flexible | no |
| For nominal pipe diameter | 16 mm |
| Halogen-free | no |
| Material | Steel |
| Polished surface | no |
| Surface | Electrogalvanized |
| Two-part | no |
| Version for | Connector |
| With inspection opening and lid | no |
| With sleeve | yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
| 2046808 OBO BETTERMANN CURVE 16 G | 46 Kbytes |
|
