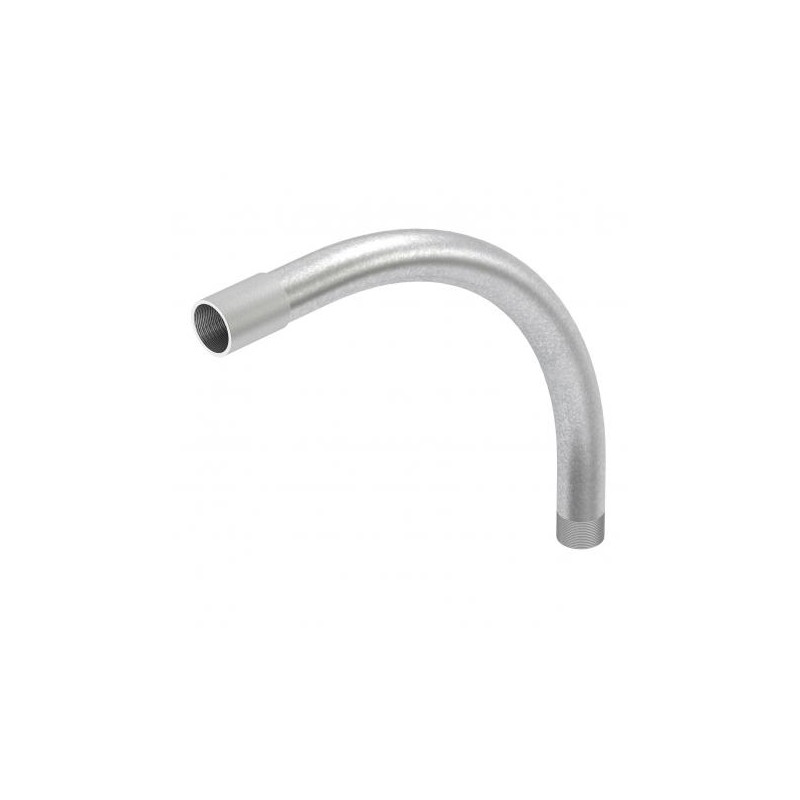

OBO BETTERMANN SBNM63 FT 2046792 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

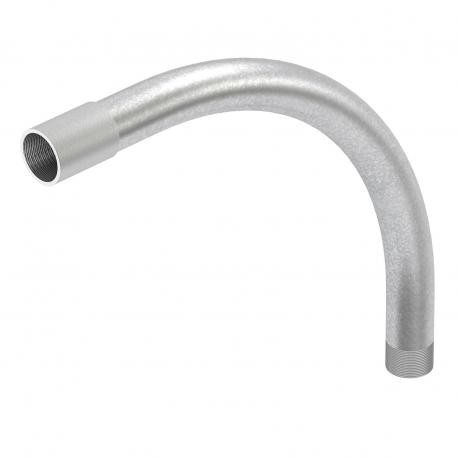

2046792 OBO BETTERMANN CURVE M63 FT THREADED

Reference: SBNM63 FT

Code: 2046792

Manufacturer: OBO BETTERMANN

Description:

CURVE M63 FT THREADED
Hot-dip galvanised steel bend, with thread. 90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.One connection sleeve is already screwed onto each pipe bend.

Categories:

  • Installation pipes/cable protection tubes > Bend for installation tubes
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 114,67 €

Unit Price: 38,224 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Angle of the bend90 °
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate5,9159 kg CO2e / 1 Piece
DimensionM63x1,5
Dimension A165 mm
Dimension B446 mm
Dimension D63 mm
Dimension l25 mm
Dimension m (mm)M63
Dimension R250 mm
Dimension t1,8 mm
Flexibleno
For nominal pipe diameter63 mm
Halogen-freeno
MaterialSteel
Polished surfaceno
SurfaceHot-dip galvanised
ThreadM63x1,5
Two-partno
Version forThread
With inspection opening and lidno
With sleeveyes
