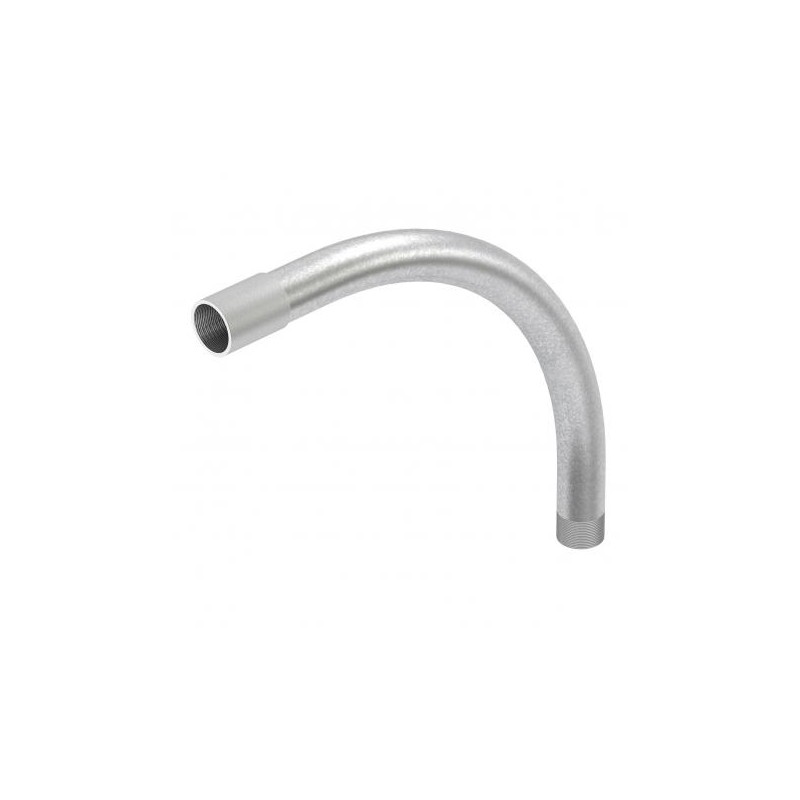

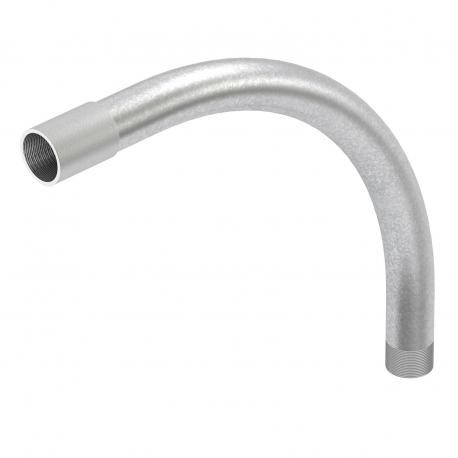

2046788 OBO BETTERMANN CURVE M25 FT THREADED
SBNM25 FT
2046788
OBO BETTERMANN
25
CURVE M25 FT THREADED
Hot-dip galvanised steel bend, with thread. 90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.One connection sleeve is already screwed onto each pipe bend.
Installation pipes/cable protection tubes > Bend for installation tubes
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Angle of the bend | 90 ° |
|---|---|
| Brushed surface | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0908 kg CO2e / 1 Piece |
| Dimension | M25x1,5 |
| Dimension A | 68 mm |
| Dimension B | 190 mm |
| Dimension D | 25 mm |
| Dimension l | 18 mm |
| Dimension m (mm) | M25 |
| Dimension R | 110 mm |
| Dimension t | 1,6 mm |
| Flexible | no |
|---|---|
| For nominal pipe diameter | 25 mm |
| Halogen-free | no |
| Material | Steel |
| Polished surface | no |
| Surface | Hot-dip galvanised |
| Thread | M25x1,5 |
| Two-part | no |
| Version for | Thread |
| With inspection opening and lid | no |
| With sleeve | yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
| 2046788 OBO BETTERMANN CURVE M25 FT THREADED | 44 Kbytes |
|
