OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANNSBNM16 FT 2046786 OBO BETTERMANN CURVE M16 FT THREADED

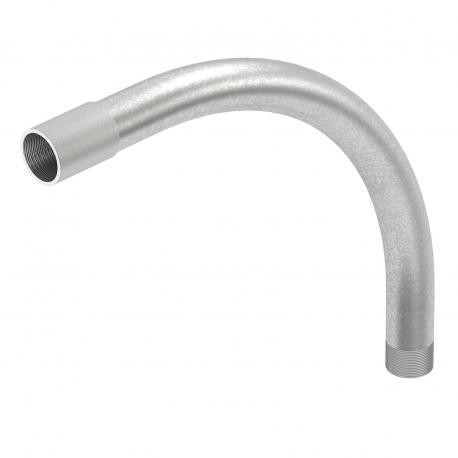

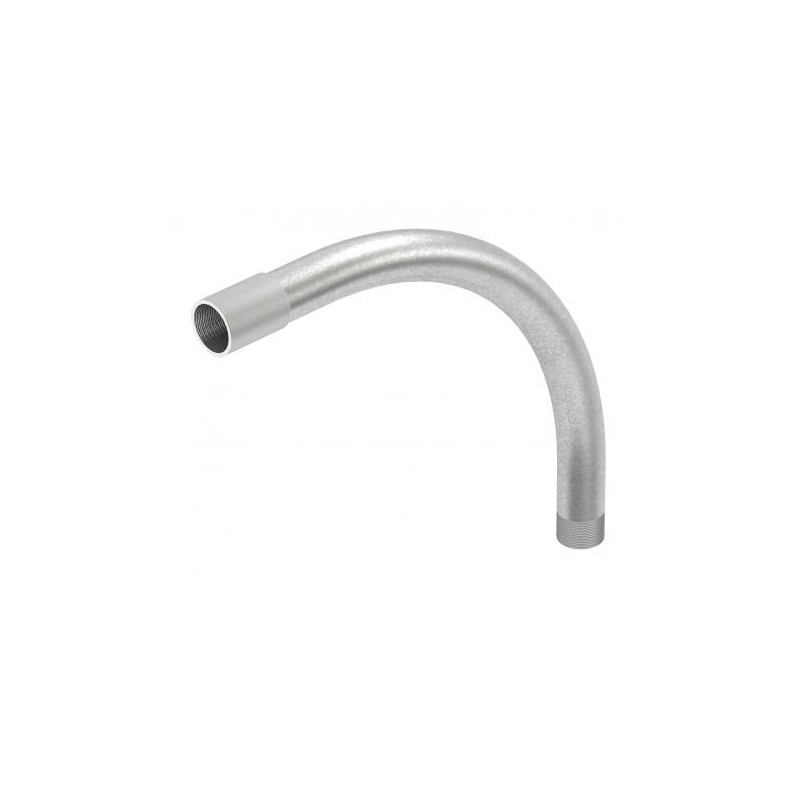

OBO BETTERMANN SBNM16 FT 2046786 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SBNM16 FT 2046786 OBO BETTERMANN CURVE M16 FT THREADED

Reference: SBNM16 FT

Code: 2046786

Manufacturer: OBO BETTERMANN

Description:

CURVE M16 FT THREADED
Threaded steel bend SBNM16 FT, with threaded sleeve M16x1.5 Steel, St, Hot dipped galvanized, DIN EN ISO 1461
Hot-dip galvanised steel bend, with thread. 90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.One connection sleeve is already screwed onto each pipe bend.

Categories:

  • Installation pipes/cable protection tubes > Bend for installation tubes
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 132,84 €

Unit Price: 8,856 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Angle of the bend90 °
Brushed surfaceno
CO2 Footprint (GWP) Cradle-to-Gate0,4634 kg CO2e / 1 Piece
DimensionM16x1,5
Dimension A45 mm
Dimension B103 mm
Dimension D16 mm
Dimension l13 mm
Dimension m (mm)M16
Dimension R50 mm
Dimension t1,4 mm
Flexibleno
For nominal pipe diameter16 mm
Halogen-freeno
MaterialSteel
Polished surfaceno
SurfaceHot-dip galvanised
ThreadM16x1,5
Two-partno
Version forThread
With inspection opening and lidno
With sleeveyes

DATASHEET - PDF

Title
Size
Type
2046786 OBO BETTERMANN CURVE M16 FT THREADED
44 Kbytes
PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN
31 Mbytes
PDF CATALOGUE FASTENING MATERIALS OBO EN
18 Mbytes
