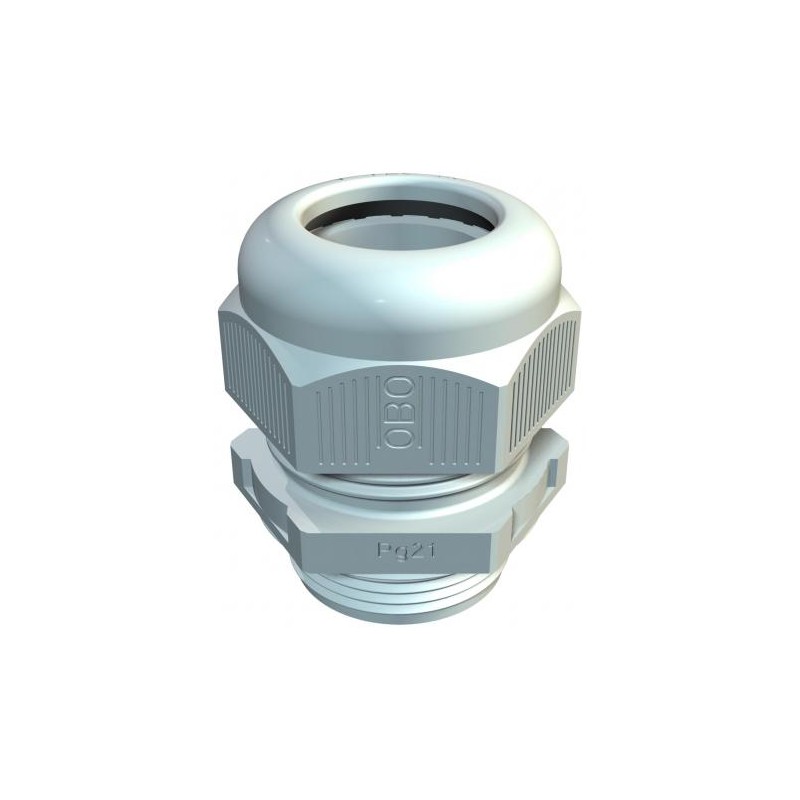

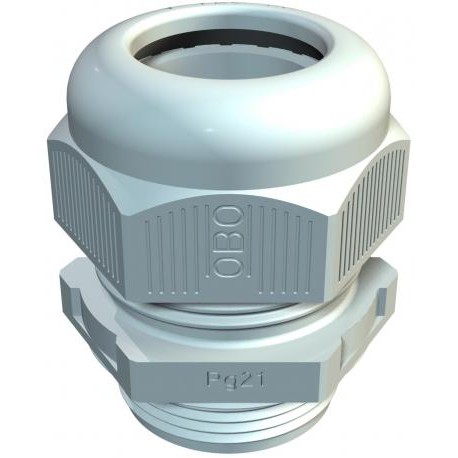

2024756 OBO BETTERMANN CABLE GLAND V-TEC PG16 GRCL
V-TEC PG16 LGR
2024756
OBO BETTERMANN
25
CABLE GLAND V-TEC PG16 GRCL
Cable gland, PG thread, light grey. Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Cable and wire entry systems > Cable gland
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0656 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | PG16 |
| Dimension E | 30 mm |
| Dimension L max. | 33 mm |
| Dimension L min. | 25 mm |
| Dimension L1 | 10 mm |
| Dimension L2 | 6 mm |
| Dimension L3 | 19 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Hexagonal corner dimension | 30 mm |
| Impact-resistant | no |
| Material | Polyamide |
|---|---|
| Nominal thread size | 16 |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 14 mm |
| Sealing area D, min. | 7 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | yes |
| Thread | Pg 16 |
| Thread increase | 1,41 mm |
| Thread length | 10 mm |
| Thread type | PG |
| Type of seal | Sealing ring |
| Unstable torque | 3,67 Nm |
| Version for | Straight |
| WAF | 27 |
| With locknut | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
| 2024756 OBO BETTERMANN CABLE GLAND V-TEC PG16 GRCL | 59 Kbytes |
|
