OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANNV-TEC VM50 LGR 2022874 OBO BETTERMANN CABLE GLAND V-TEC M50X1,5 GRCL

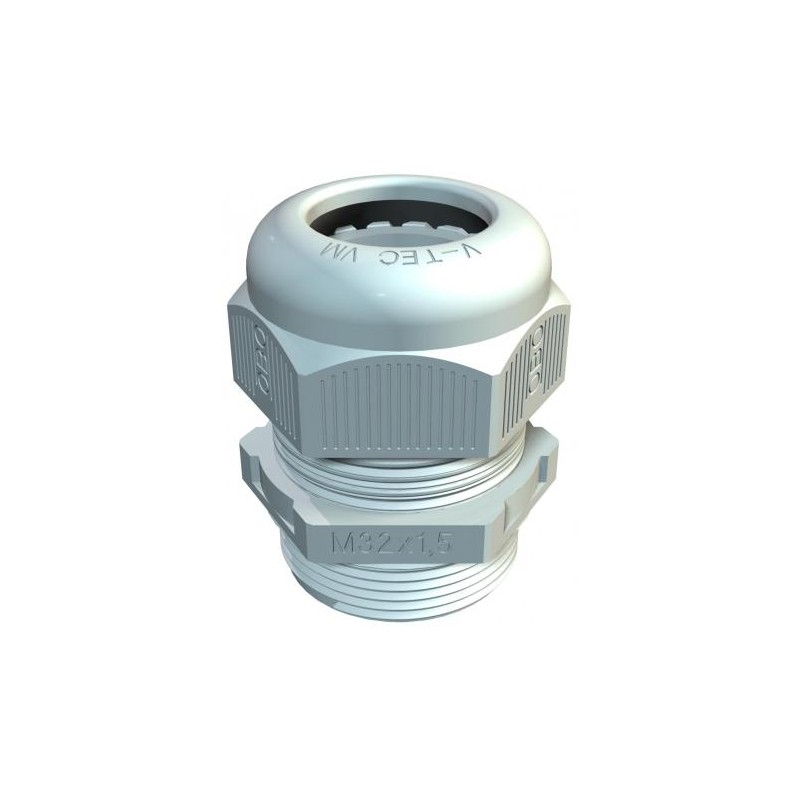

OBO BETTERMANN V-TEC VM50 LGR 2022874 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

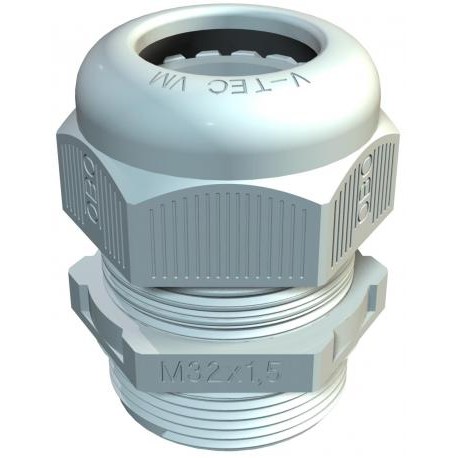

V-TEC VM50 LGR 2022874 OBO BETTERMANN CABLE GLAND V-TEC M50X1,5 GRCL

Reference: V-TEC VM50 LGR

Code: 2022874

Manufacturer: OBO BETTERMANN

Description:

CABLE GLAND V-TEC M50X1,5 GRCL
V-TEC VM50 LGR cable gland, total metric M50 Polyamide, PA,
Cable gland, metric thread, light grey. Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Categories:

  • Cable and wire entry systems > Cable gland
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 40,51 €

Unit Price: 8,102 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,2902 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionM50
Dimension E60 mm
Dimension L max.52 mm
Dimension L min.43 mm
Dimension L112 mm
Dimension L28 mm
explosion-proofno
Fibre-glass reinforcedno
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Hexagonal corner dimension60 mm
Impact-resistantno
MaterialPolyamide
Nominal thread size50
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.35 mm
Sealing area D, min.23 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
ThreadM50 x 1,5
Thread increase1,5 mm
Thread length12 mm
Thread typeMetric
Type of sealSealing ring
Unstable torque12 Nm
Version forStraight
WAF54
With locknutno

ETIM for 2022874 Cable glands and cable entry products (EC000441)

Feature nameThread type (EF001758)
Feature valueMetric
Feature nameNominal thread size metric/PG (EF007839)
Feature value50
Feature namePitch thread (EF003712)
Feature value1.5 mm
Feature nameThread length (EF000368)
Feature value12 mm
Feature nameWrench width (EF000177)
Feature value54 mm
Feature nameHexagon angular dimension (EF005268)
Feature value60 mm
Feature nameSuitable for cable diameter (EF005466)
Feature value23 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameMaterial quality (EF001257)
Feature valuePolyamide (PA)
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP68
Feature nameShock resistant (EF000084)
Feature valueNo
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameBend radius protection/trumpet flare (EF000734)
Feature valueNo
Feature nameWith locknut (EF005049)
Feature valueNo
Feature nameModel (EF000010)
Feature valueStraight
Feature nameMulti seal area (EF005004)
Feature valueNo
Feature nameFlat cable coupling (EF004685)
Feature valueNo
Feature nameWith strain relief (EF000878)
Feature valueYes
Feature nameType of sealing (EF001217)
Feature valueEV009696
Feature nameSeparable screw gland (EF005337)
Feature valueNo
Feature nameOperating temperature (EF001742)
Feature value-20 °C
Feature nameExplosion-tested version (EF004191)
Feature valueNo
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
