OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANN2022870 OBO BETTERMANN CABLE GLAND V-TEC M32X1,5 GRCL

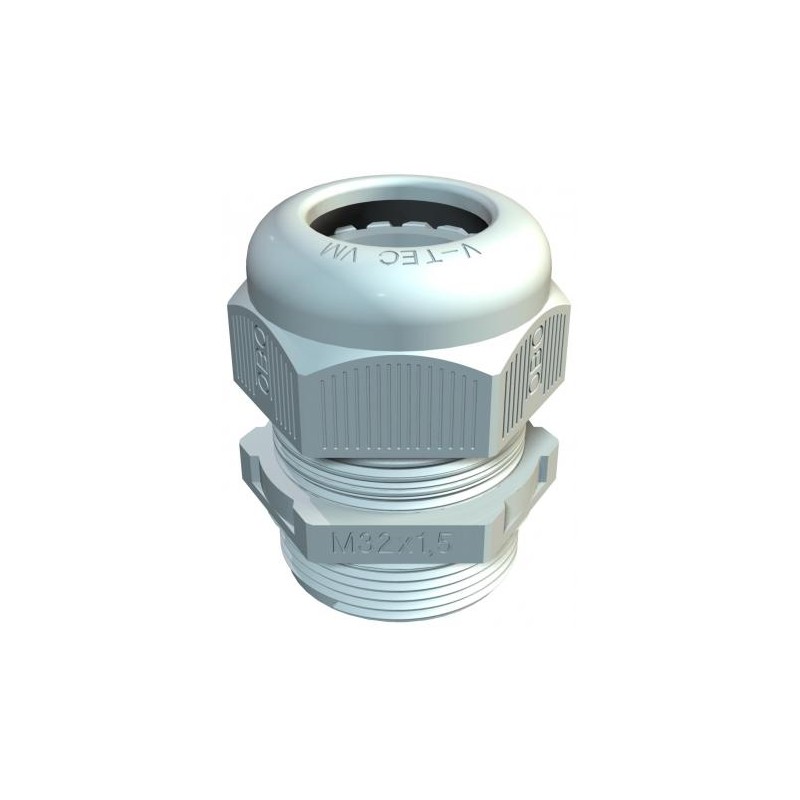

OBO BETTERMANN V-TEC VM32 LGR 2022870 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

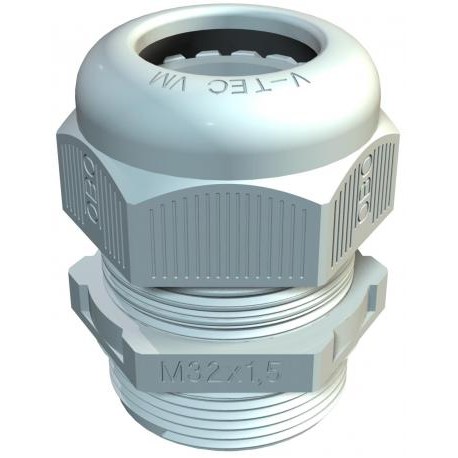

2022870 OBO BETTERMANN CABLE GLAND V-TEC M32X1,5 GRCL

Reference: V-TEC VM32 LGR

Code: 2022870

Manufacturer: OBO BETTERMANN

Description:

CABLE GLAND V-TEC M32X1,5 GRCL
Cable gland, metric thread, light grey. Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Categories:

  • Cable and wire entry systems > Cable gland
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 49,59 €

Unit Price: 2,4797 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,1045 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionM32
Dimension E41 mm
Dimension L max.40 mm
Dimension L min.29 mm
Dimension L111 mm
Dimension L26 mm
explosion-proofno
Fibre-glass reinforcedno
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Hexagonal corner dimension41 mm
Impact-resistantno
MaterialPolyamide
Nominal thread size32
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.21 mm
Sealing area D, min.15 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
ThreadM32 x 1,5
Thread increase1,5 mm
Thread length11 mm
Thread typeMetric
Type of sealSealing ring
Unstable torque7,5 Nm
Version forStraight
WAF36
With locknutno
