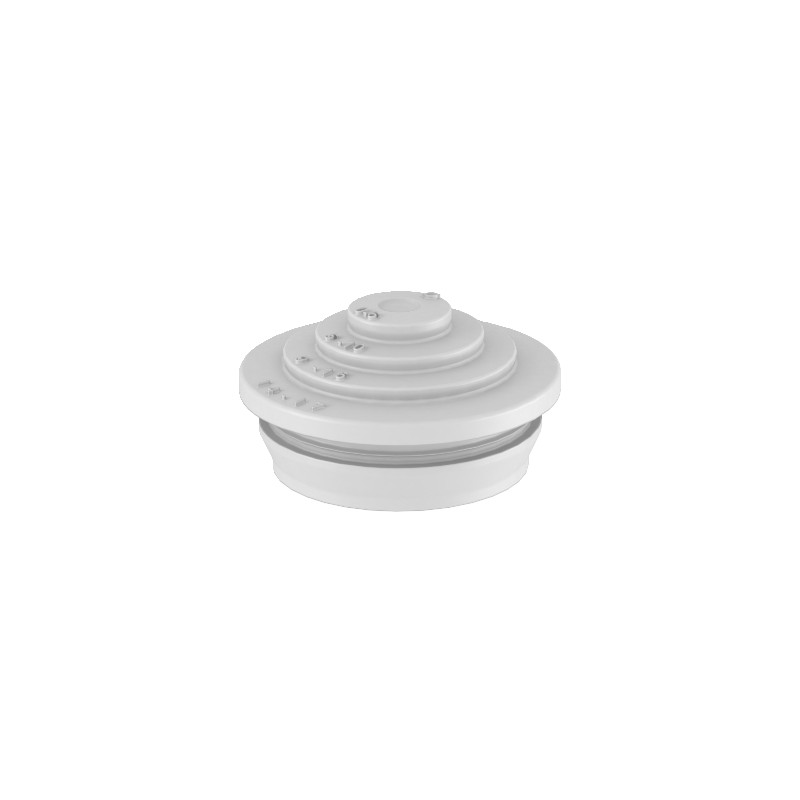

2012354 OBO BETTERMANN CONE FOR WALL THICKNESS OF 3MM
EDS M25 LGR
2012354
OBO BETTERMANN
100
CONE FOR WALL THICKNESS OF 3MM
EDS plug-in seal, light grey. The push-in nipple can be cut back to suit the relevant cable diameter.
Cable and wire entry systems > Cable plug sealing clamp
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0075 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | M25 |
| Dimension A | 3,1 mm |
| Dimension D1 | 29,5 mm |
| Dimension D2 | 25,3 mm |
| Dimension D3 | 6 mm |
| Dimension D4 | 10 mm |
| Dimension D5 | 15 mm |
| Dimension L | 14,5 mm |
| Dimension t | 3,1 mm |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
|---|---|
| for diameter, max. | 22 mm |
| for wall thickness, max. | 3,1 |
| for wall thickness, min. | 2,5 |
| Halogen-free | yes |
| Material | Thermoplastic elastomer |
| Nominal diameter | 25 mm |
| Protection rating | IP54 |
| Size | M25 |
| Version for | Cuttable |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
| 2012354 OBO BETTERMANN CONE FOR WALL THICKNESS OF 3MM | 45 Kbytes |
|
