2008880 OBO BETTERMANN STRIP CONEX4 POLES P/ SDB 03
KLS-SDB 03
2008880
OBO BETTERMANN
STRIP CONEX4 POLES P/ SDB 03

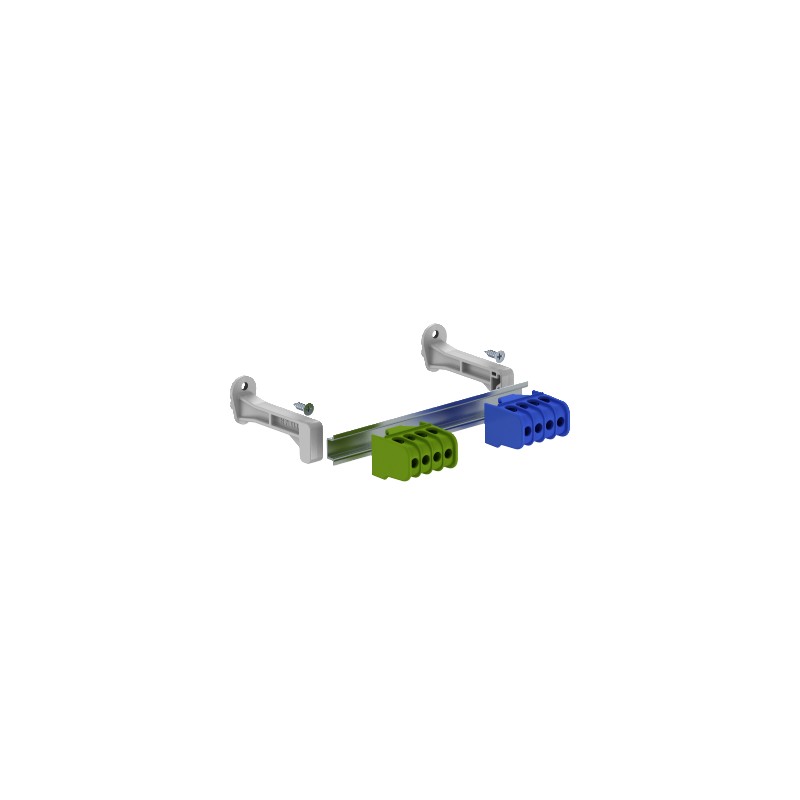

Terminal strip set with screw terminals for SDB 03. Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip empty small distributors of the SDB 03... type series.Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal
Terminal blocks > Single- and multi-pole terminal strip
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,4314 kg CO2e / 1 Piece |
|---|---|
| Dimension | 82x15x4 |
| Height | 31 mm |
| Length | 122 mm |
| Nominal cross-section, max. | 16 mm² |
| Nominal cross-section, min. | 6 mm² |
|---|---|
| Nominal current | 100 A |
| Nominal voltage | 450 V |
| Number of screwless terminals per pole | 4 |
| Width | 20,5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
| 2008880 OBO BETTERMANN STRIP CONEX4 POLES P/ SDB 03 | 45 Kbytes |
|
