OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANNSDB 12L PC 2008872 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.12 DISP PC

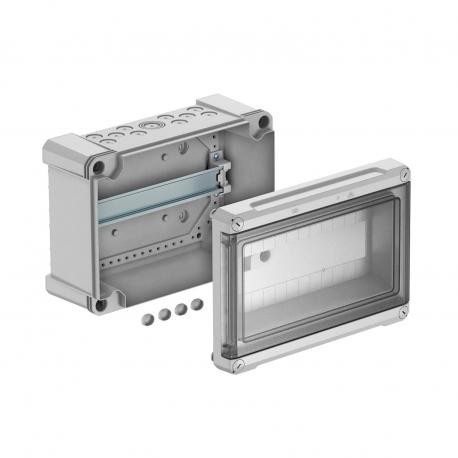

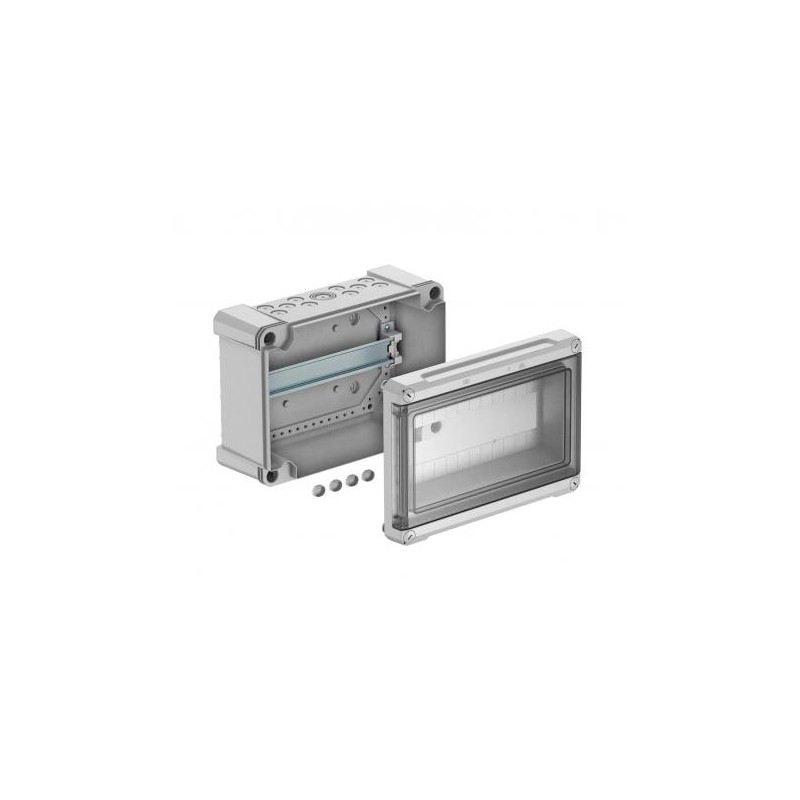

OBO BETTERMANN SDB 12L PC 2008872 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SDB 12L PC 2008872 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.12 DISP PC

Reference: SDB 12L PC

Code: 2008872

Manufacturer: OBO BETTERMANN

Description:

BOX, DISTR.WITHOUT REGLT.12 DISP PC
Small SDB 12L PC distribution board, without power strip, 12 devices 286x202x125 Polycarbonate, PC,
Distribution box, 12 division units, empty, polycarbonate. Small distributor for surface mounting, for the current sub-distribution in interior and exterior areas, according to IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out. Including 4 screw cover caps.- Protection-insulated for a maximum of 12 division units- 11 break-out openings each of Ø 20 mm at the top and bottom- 1 combination break-out opening each of Ø 20/25/32 mm at the top and bottom- 4 screw cover capsNominal current 63 APower loss at 40 K 25.1 W

Categories:

  • Distribution boards > Small distribution board
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 49,70 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate4,8499 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension286x202x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length286 mm
MaterialPolycarbonate
Mounting type, consumer unitsStructure
Nominal current63 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK08
Transparent lidyes
Version, small distributor coverWith cut-out
Width202 mm
Width in divisional units12
With lockno
With mounting plateno

ETIM for 2008872 Distribution boards (EC000214)

Feature nameNumber of rows (EF000266)
Feature value1
Feature nameWidth in number of modular spacings (EF002950)
Feature value12
Feature nameType of covering (EF000339)
Feature valueCover
Feature nameTransparent cover/door (EF006244)
Feature valueYes
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameExtension possible (EF001088)
Feature valueYes
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameHeight (EF000040)
Feature value126 mm
Feature nameWidth (EF000008)
Feature value202 mm
Feature nameDepth (EF000049)
Feature value126 mm
