OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANNSDB 09L PC 2008868 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.9 DISP PC

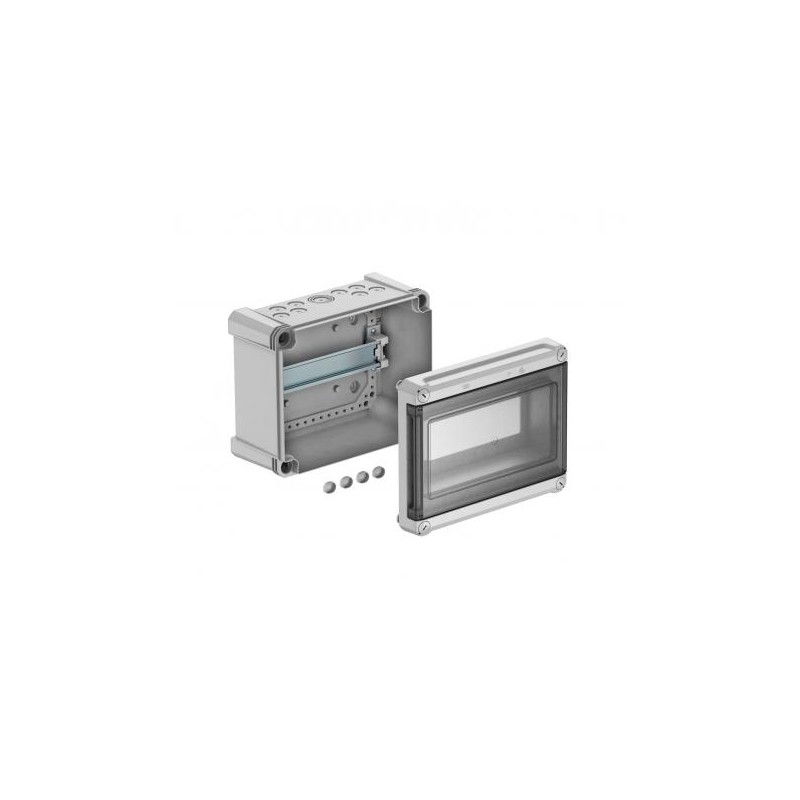

OBO BETTERMANN SDB 09L PC 2008868 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

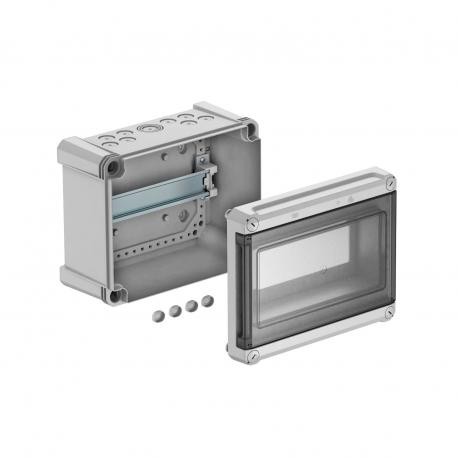

SDB 09L PC 2008868 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.9 DISP PC

Reference: SDB 09L PC

Code: 2008868

Manufacturer: OBO BETTERMANN

Description:

BOX, DISTR.WITHOUT REGLT.9 DISP PC
Small SDB 09L PC distribution board, without power strip, 9 devices 240x191x125 Polycarbonate, PC,
Small distributor 9 separations, vacuum, made of polycarbonate. Small distributor for flush mounting, for indoor and outdoor power sub-distribution, according to IEC 439-3. With pre-assembled 35 mm U-rail. IP66 protection class and IK08 protection degree Transparent cover for screwing, with section. Included 4 threaded plugs.- Protective insulation for a maximum of 9 dividing units- 8 rupture openings Ø 20 mm each at the top and bottom- 1 combined opening Ø 20/25/32 mm at the top and bottom- 4 screw capsThe small PC distributors are suitable for indoor and outdoor mounting. Rated current: 63 A Lost power at 40 K: 20.7 W

Categories:

  • Distribution boards > Small distribution board
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 33,64 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Surface-mounted distribution box, with protective insulation for max. 9 division units. There are 9 break-out openings (8x Ø20 and 1x Ø20/25/32) on both the upper and lower sides incl. pre-mounted 35 mm hat profile support rail. The four screw cover caps supplied prevent unwanted "voltage carry-over".

ETIM for 2008868 Distribution boards (EC000214)

Feature nameNumber of rows (EF000266)
Feature value1
Feature nameWidth in number of modular spacings (EF002950)
Feature value9
Feature nameType of covering (EF000339)
Feature valueCover
Feature nameTransparent cover/door (EF006244)
Feature valueYes
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameExtension possible (EF001088)
Feature valueYes
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameColour (EF000007)
Feature valueGrey
Feature nameRAL-number (EF000116)
Feature value7035
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameHeight (EF000040)
Feature value126 mm
Feature nameWidth (EF000008)
Feature value191 mm
Feature nameDepth (EF000049)
Feature value126 mm

DATASHEET - PDF

Title
Size
Type
2008868 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.9 DISP PC
53 Kbytes
PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN
31 Mbytes
PDF CATALOGUE FASTENING MATERIALS OBO EN
18 Mbytes
