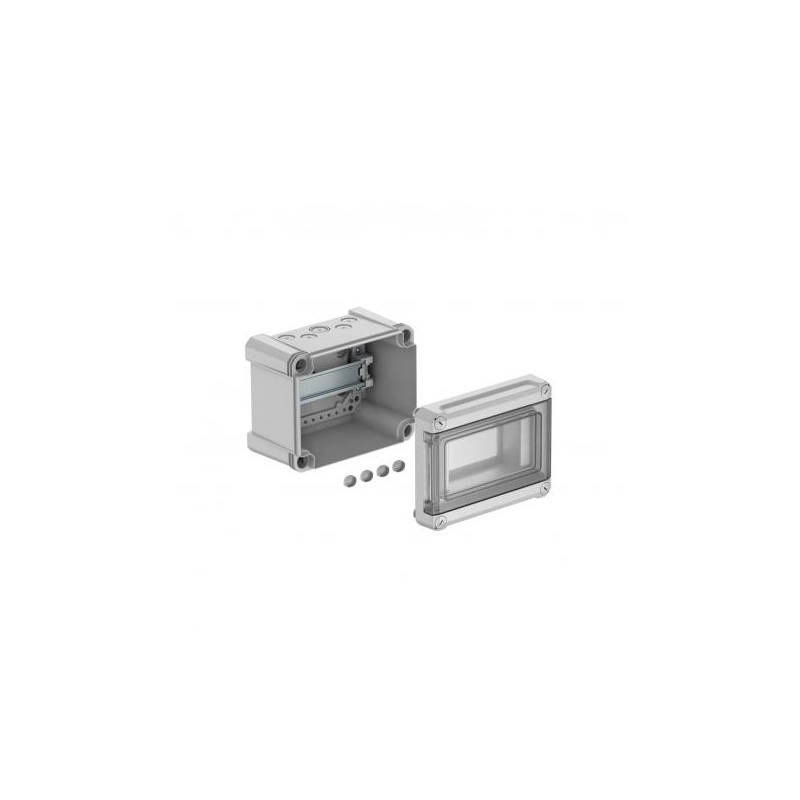

OBO BETTERMANN SDB 05L PC 2008864 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

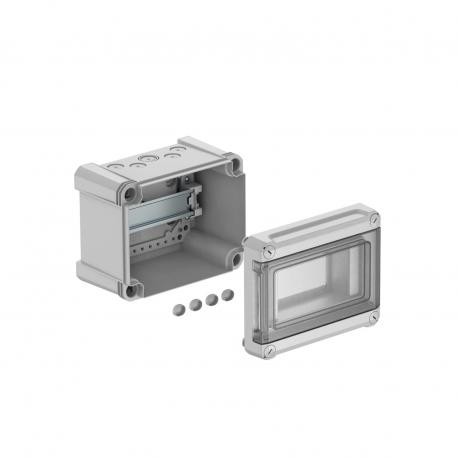

2008864 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.5 DISP PC

Reference: SDB 05L PC

Code: 2008864

Manufacturer: OBO BETTERMANN

Description:

BOX, DISTR.WITHOUT REGLT.5 DISP PC
Distribution box, 5 division units, empty, polycarbonate. Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out. Including 4 screw cover caps.- Protection-insulated for a maximum of 5 division units- 4 Ø 20 mm break-out openings each at the top and bottom- 1 Ø 20/25 mm combination break-out opening each at the top and bottom- 4 screw cover capsNominal current 40 APower loss at 40 K 19 W

Categories:

  • Distribution boards > Small distribution board
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 27,82 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate2,8743 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension190x150x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length191 mm
MaterialPolycarbonate
Mounting type, consumer unitsStructure
Nominal current40 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK08
Transparent lidyes
Version, small distributor coverWith cut-out
Width151 mm
Width in divisional units5
With lockno
With mounting plateno
