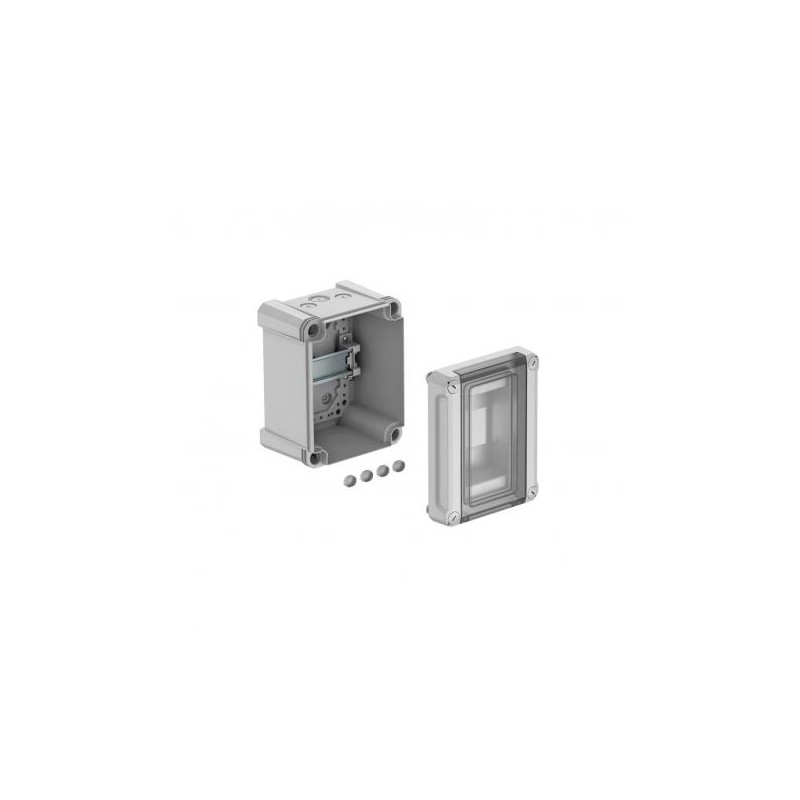

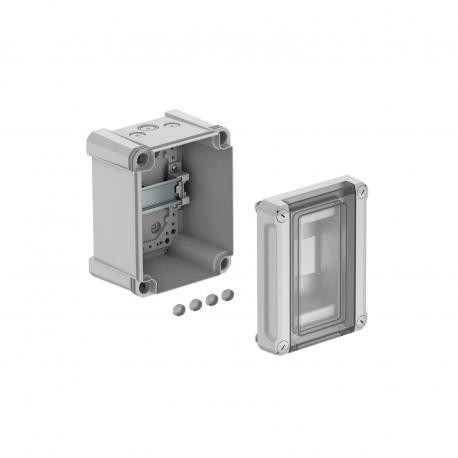

2008860 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.3 DISP PC
SDB 03L PC
2008860
OBO BETTERMANN
BOX, DISTR.WITHOUT REGLT.3 DISP PC
Distribution box, 3 division units, empty, polycarbonate. Small distributor for surface mounting, for the current sub-distribution in interior and exterior areas, according to IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out. Including 4 screw cover caps.- Protection-insulated for a maximum of 3 division units- 2 break-out openings each of Ø 20 mm at the top and bottom- 1 combination break-out opening each of Ø 20/25 mm at the top and bottom- 4 screw cover capsNominal current 40 APower loss at 40 K 17 WMeasured voltage Un: 400 VOperating measured voltage Ue: 400 VImpulse current resistance Cat.III Uimp: 4 kV
Distribution boards > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,7558 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Cover type | Cover |
| Dimension | 150x190x125 |
| DIN rail | yes |
| EMC version | no |
| Extension option | yes |
| Height | 126 mm |
| Length | 191 mm |
| Material | Polycarbonate |
| Mounting type, consumer units | Structure |
| Nominal current | 40 A |
|---|---|
| Nominal voltage | 400 V |
| Number of rows | 1 |
| Protection rating | IP66 |
| Protection rating IK code | IK08 |
| Transparent lid | yes |
| Version, small distributor cover | With cut-out |
| Width | 151 mm |
| Width in divisional units | 3 |
| With lock | no |
| With mounting plate | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
| 2008860 OBO BETTERMANN BOX, DISTR.WITHOUT REGLT.3 DISP PC | 44 Kbytes |
|
