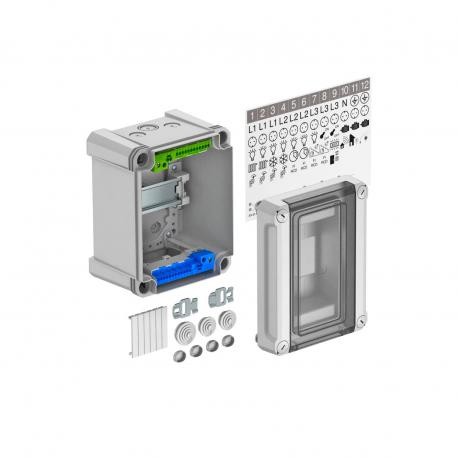

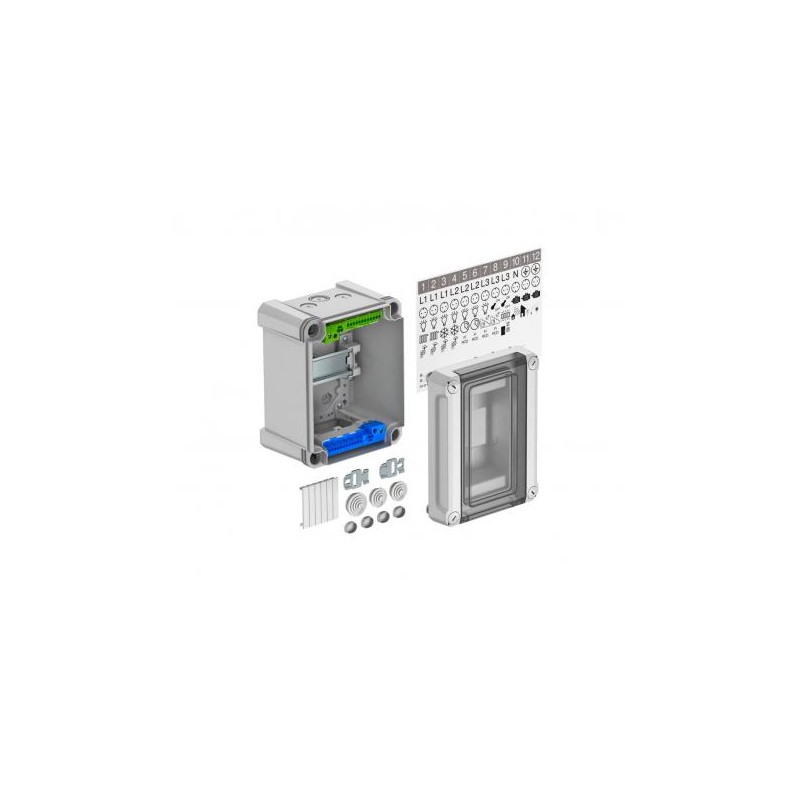

OBO BETTERMANN SDB 03 PC 2008840 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2008840 OBO BETTERMANN DISTRIBUTION BOX 3 DISP PC

Reference: SDB 03 PC

Code: 2008840

Manufacturer: OBO BETTERMANN

Description:

DISTRIBUTION BOX 3 DISP PC
Distribution box, 3 division units, with terminal strip, polycarbonate. Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 3 division units- Terminal strip set consisting of: One each of: PE/N terminal (1x25 mm² and 1x16 mm² screw terminals, 2x4 mm² and 12x2.5 mm² screwless terminals), mini hat profile rail, mounting instructions and fastening set- Identification plates for connected consumers- 2 elastic cable entries Ø20 mm for cable diameters of 0–17 mm- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm-

Categories:

  • Distribution boards > Small distribution board
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 52,95 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate3,8843 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension150x190x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length191 mm
MaterialPolycarbonate
Mounting type, consumer unitsStructure
Nominal current40 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK08
TerminalsConnector
Transparent lidyes
Version, small distributor coverWith cut-out
Width151 mm
Width in divisional units3
With lockno
With mounting plateno
