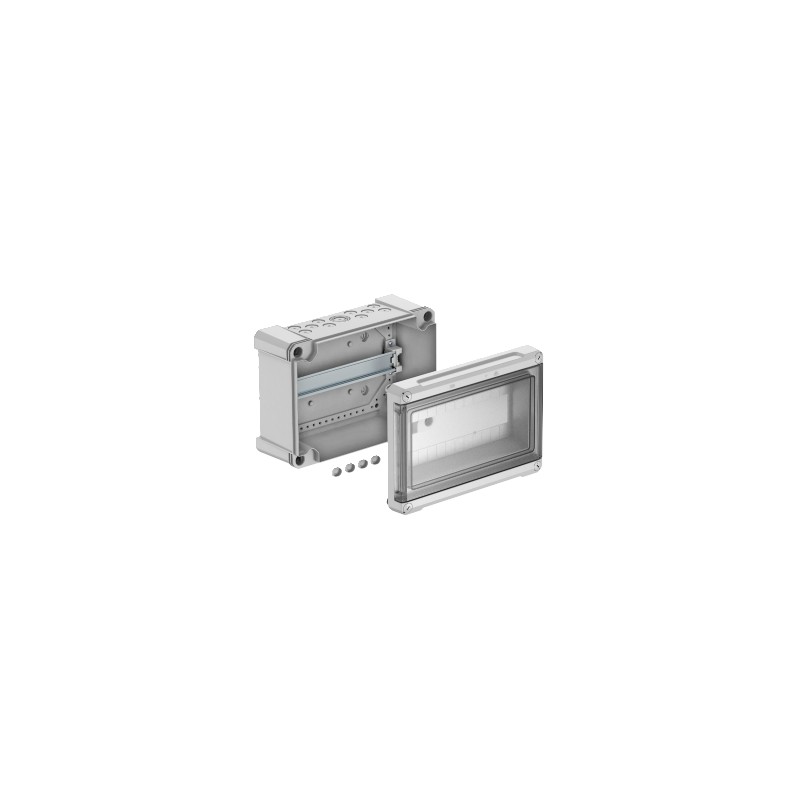

OBO BETTERMANN SDB 12L PS 2008832 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2008832 OBO BETTERMANN BOX, DISTR.WITHOUT POWER STRIP,12 DISP

Reference: SDB 12L PS

Code: 2008832

Manufacturer: OBO BETTERMANN

Description:

BOX, DISTR.WITHOUT POWER STRIP,12 DISP
Distribution box, 12 division units, empty, polystyrene. Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 12 division units- 11 Ø 20 mm break-out openings each at the top and bottom- 1 Ø 20/25/32 mm combination break-out opening each at the top and bottom- 4 screw cover capsNominal current 63 APower loss at 40 K 25.1 W

Categories:

  • Distribution boards > Small distribution board
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 39,26 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate4,0312 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension286x202x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length286 mm
MaterialPolystyrene
Mounting type, consumer unitsStructure
Nominal current63 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK07.
Transparent lidyes
Version, small distributor coverWith cut-out
Width202 mm
Width in divisional units12
With lockno
With mounting plateno
