OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANN2008824 OBO BETTERMANN BOX, DISTR.WITHOUT POWER STRIP,5 DISP

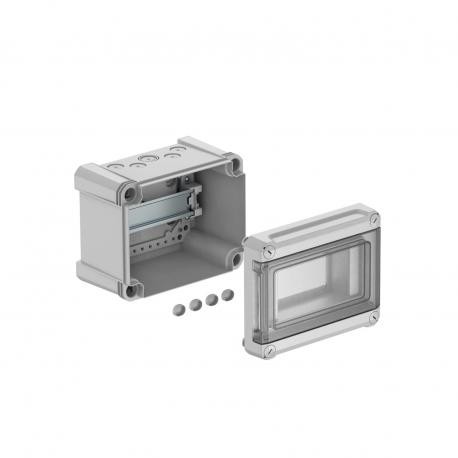

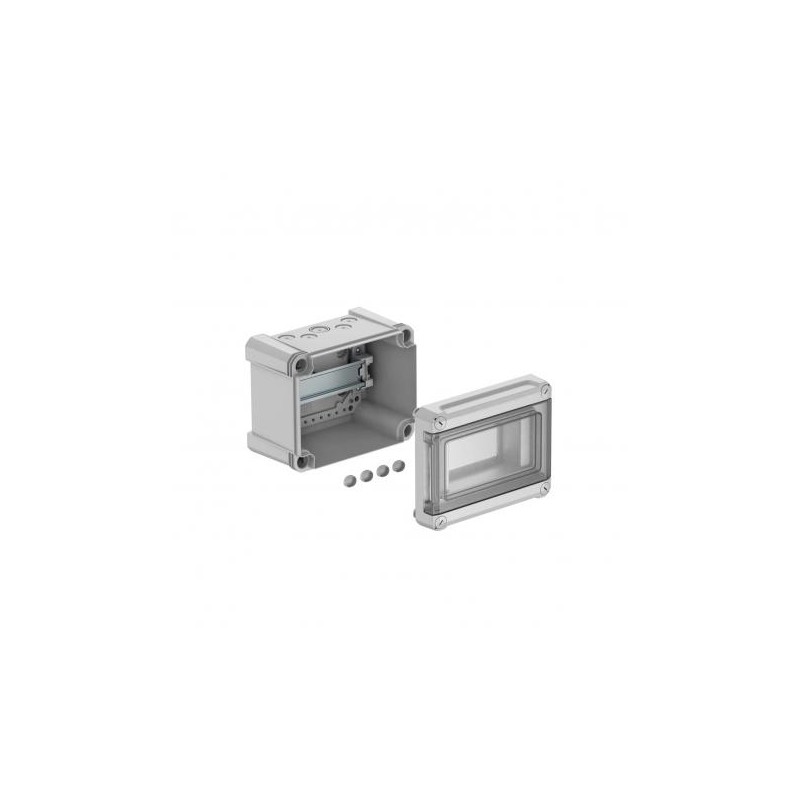

OBO BETTERMANN SDB 05L PS 2008824 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2008824 OBO BETTERMANN BOX, DISTR.WITHOUT POWER STRIP,5 DISP

Reference: SDB 05L PS

Code: 2008824

Manufacturer: OBO BETTERMANN

Description:

BOX, DISTR.WITHOUT POWER STRIP,5 DISP
Distribution box, 5 division units, empty, polystyrene. Distribution box for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 5 division units- 4 Ø 20 mm break-out openings each at the top and bottom- 1 Ø 20/25 mm combination break-out opening each at the top and bottom- 4 screw cover capsNominal current 40 APower loss at 40 K 19 W

Categories:

  • Distribution boards > Small distribution board
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 25,78 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate2,4299 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension190x150x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length191 mm
MaterialPolystyrene
Mounting type, consumer unitsStructure
Nominal current40 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK07.
Transparent lidyes
Version, small distributor coverWith cut-out
Width151 mm
Width in divisional units5
With lockno
With mounting plateno

DATASHEET - PDF

Title
Size
Type
2008824 OBO BETTERMANN BOX, DISTR.WITHOUT POWER STRIP,5 DISP
44 Kbytes
PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN
31 Mbytes
PDF CATALOGUE FASTENING MATERIALS OBO EN
18 Mbytes
