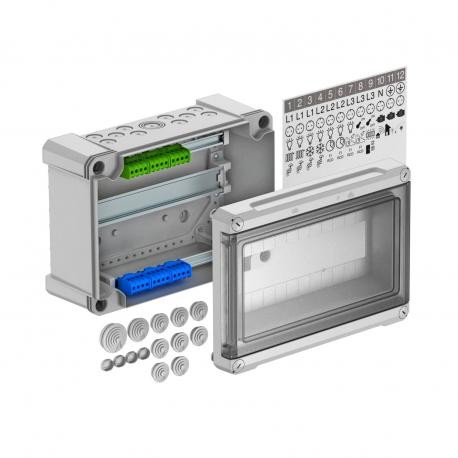

OBO BETTERMANN SDB 12 PS 2008812 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2008812 OBO BETTERMANN DISTRIBUTION BOX 12 DISP PS

Reference: SDB 12 PS

Code: 2008812

Manufacturer: OBO BETTERMANN

Description:

DISTRIBUTION BOX 12 DISP PS

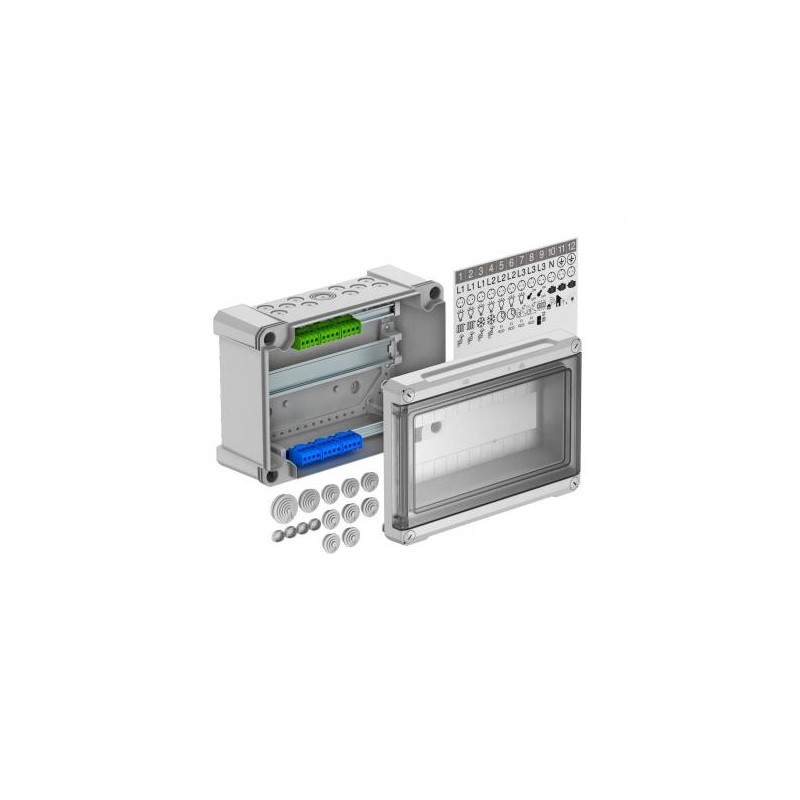

Distribution box, 12 division units, with terminal strip, polystyrene. Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 12 division units- Terminal strip set consisting of: Three each of: PE/N terminals with 4x 16 mm² screw terminals, mini hat profile rail, mounting instructions and fastening set- Identification plates for connected consumers- 8 elastic cable entries Ø20 mm for cable diameters of 0–17 mm- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm- 1 elastic cable entry Ø32 mm for cable

Categories:

  • Distribution boards > Small distribution board
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 63,71 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate5,0202 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
Cover typeCover
Dimension286x202x125
DIN railyes
EMC versionno
Extension optionyes
Height126 mm
Length286 mm
MaterialPolystyrene
Mounting type, consumer unitsStructure
Nominal current63 A
Nominal voltage400 V
Number of rows1
Protection ratingIP66
Protection rating IK codeIK07.
TerminalsConnector
Transparent lidyes
Version, small distributor coverWith cut-out
Width202 mm
Width in divisional units12
With lockno
With mounting plateno
