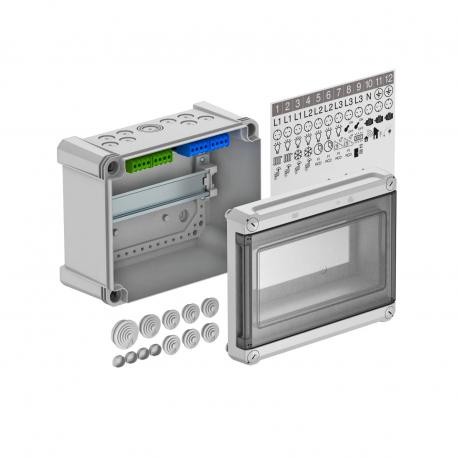

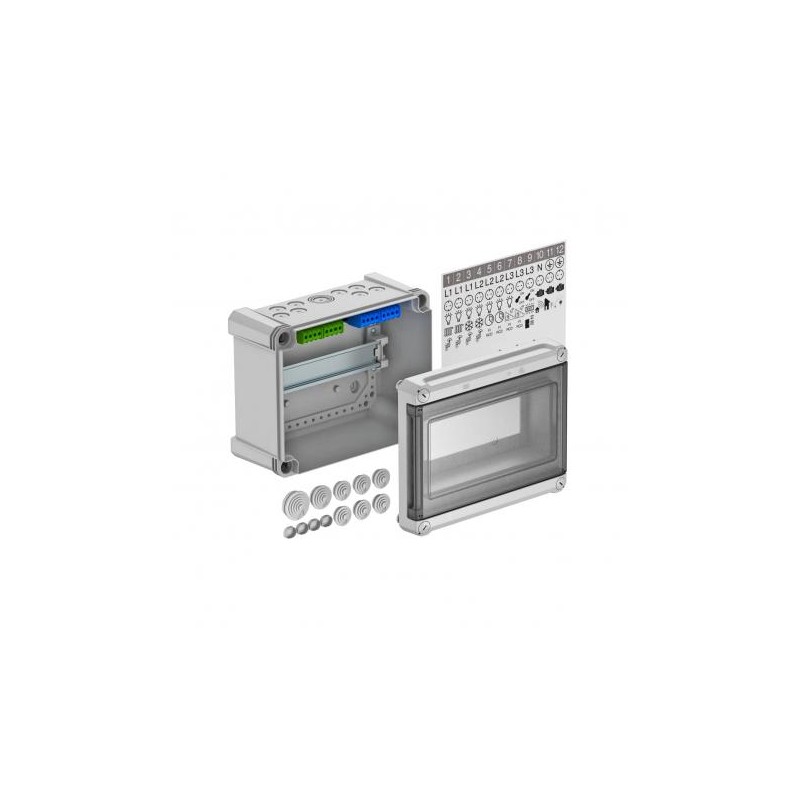

2008808 OBO BETTERMANN DISTRIBUTION BOX 9 DISP PS
SDB 09 PS
2008808
OBO BETTERMANN
DISTRIBUTION BOX 9 DISP PS
Distribution box, 9 division units, with terminal strip, polystyrene. Distribution box with terminal strip for surface mounting, for the current sub-distribution in interior and protected exterior areas, in accordance with IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK07 protection rating. Transparent cover to screw on, with cut-out.- Protection-insulated for a maximum of 9 division units- Terminal strip set consisting of: Two each of: PE/N terminals with 4x 16 mm² screw terminals, mini hat profile rail, mounting instructions and fastening set- Identification plates for connected consumers- 6 elastic cable entries Ø20 mm for cable diameters of 0-17 mm- 1 elastic cable entry Ø25 mm for cable diameters of 0–22 mm- 1 elastic cable entry Ø32 mm for cable diam
Distribution boards > Small distribution board
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 3,9546 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Cover type | Cover |
| Dimension | 240x191x125 |
| DIN rail | yes |
| EMC version | no |
| Extension option | yes |
| Height | 126 mm |
| Length | 241 mm |
| Material | Polystyrene |
| Mounting type, consumer units | Structure |
| Nominal current | 63 A |
| Nominal voltage | 400 V |
|---|---|
| Number of rows | 1 |
| Protection rating | IP66 |
| Protection rating IK code | IK07. |
| Terminals | Connector |
| Transparent lid | yes |
| Version, small distributor cover | With cut-out |
| Width | 191 mm |
| Width in divisional units | 9 |
| With lock | no |
| With mounting plate | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
| 2008808 OBO BETTERMANN DISTRIBUTION BOX 9 DISP PS | 57 Kbytes |
|
