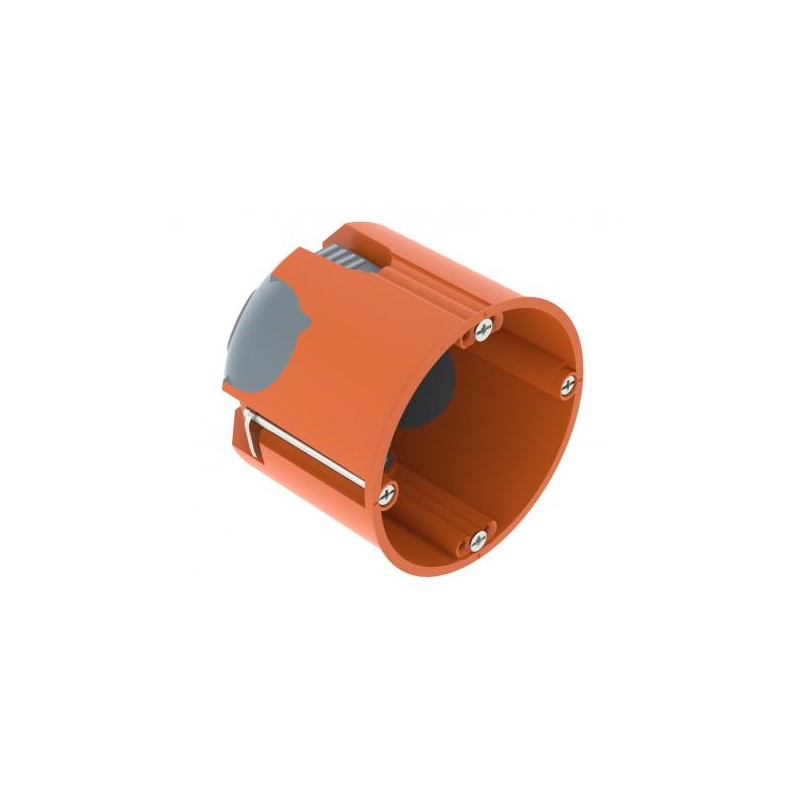

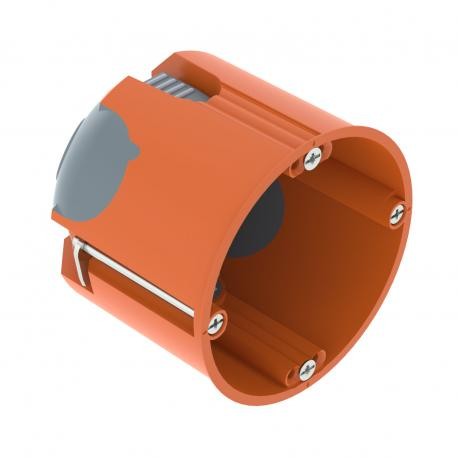

HG 61-L 2003808 OBO BETTERMANN HW Wall socket panel HG 61-L, airtight Ø68mm, H61mm Polypropylene / Thermopla..
Reference: HG 61-L
Code: 2003808
Manufacturer: OBO BETTERMANN
Description:
HW Wall socket panel HG 61-L, airtight Ø68mm, H61mm Polypropylene / Thermoplastic elastomer, PP/TPE
HW Box Wall Socket Hermetic Panel HG 61-L
HW Cavity wall device connection box 61, airtight. Cavity wall device box with airtight membrane entries for use in cavity walls with an installation depth of at least 61 mm and a plate thickness of 5–40 mm. • 2 x 3 screw domes• Device screws, clamping straps• 2 combination pipe entries of Ø 20 and 25 mm• 4 entries for NYM cables 3 x 1.5 mm• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²• Airtight connection with other accessory sockets via connector, type ZH 11-V• Sound insulation tested up to 70 dB according to ISO 10140-2Delivery accessories: 10 x connectors, type ZH 11-VTested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
Categories:
- Connection devices > Box/housing for built-in mounting in the wall/ceiling
- OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
- More Info
- ETIM
- Reviews
LAST VIEWED
MORE INFO
| Airtight | yes |
|---|---|
| Cable entries 3 x 1.5 mm² | 4 |
| Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² | 2 |
| Cable entries 5 x 2.5 mm² / 7 x 1.5 mm² | 2 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0889 kg CO2e / 1 Piece |
| Colour | orange / grey |
| Cover | Without |
| Cover fastening | Screws , |
| Device fixing | Screws , |
| Diameter | 68 mm |
| Dimension | Ø68mm, H61mm |
| Flame-resistant | Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C |
| for pipe diameter | 20/25 mm |
| Halogen-free | yes |
| Height | 61 mm |
| Impact-resistant | no |
| Material | Polypropylen / Thermoplastisches Elastomer |
|---|---|
| Milling hole diameter | 68 mm |
| No. of entries | 10 |
| Nominal cross-section, max. | 2,5 mm² |
| Nominal cross-section, min. | 1,5 mm² |
| Number of switch boxes | 1 |
| Protection rating | IP30 |
| Rated voltage | 400 V |
| Shape | Round |
| Suitable for plate thickness, max. | 40 mm |
| Suitable for plate thickness, min. | 5 mm |
| Support | Connector |
| Type of entry | NYM cables, data cables and corrugated pipes |
| Type of housing penetration | Insertion membrane |
| With bolts | yes |
ETIM for 2003808 Junction and back boxes (EC002601)
Feature name
Feature value
Feature nameMounting method (EF000003)
Feature valueHollow wall
Feature nameShape (EF000051)
Feature valueRound
Feature nameConstruction type (EF000767)
Feature valueFlush mounted box
Feature nameModel (EF000010)
Feature valueSingle
Feature nameDiameter (EF000551)
Feature value68 mm
Feature nameDepth (EF005457)
Feature value61 mm
Feature nameFor number of electric fittings (EF004702)
Feature value1
Feature nameMounting switching equipment (EF004508)
Feature valueScrewing
Feature nameWith screws (EF005066)
Feature valueYes
Feature nameHousing feed-through by break-out opening (EF009763)
Feature valueNo
Feature nameHousing feed-through by seal membrane (EF009206)
Feature valueYes
Feature nameHousing feed-through by nozzle (EF009207)
Feature valueNo
Feature nameHousing feed-through by step membrane (EF009208)
Feature valueNo
Feature nameFor tube diameter (EF005496)
Feature value20/25 mm
Feature nameNumber of inlets (EF003593)
Feature value10
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameColour (EF000007)
Feature valueOrange
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameCover attachment (EF004586)
Feature valueScrewed
Feature nameNozzle (EF008076)
Feature valueOther
