OBO BETTERMANNVBS Connection and fastening systems - OBO BETTERMANN2002523 OBO BETTERMANN BOX B 12 M EMPTY GR DUROPLAST

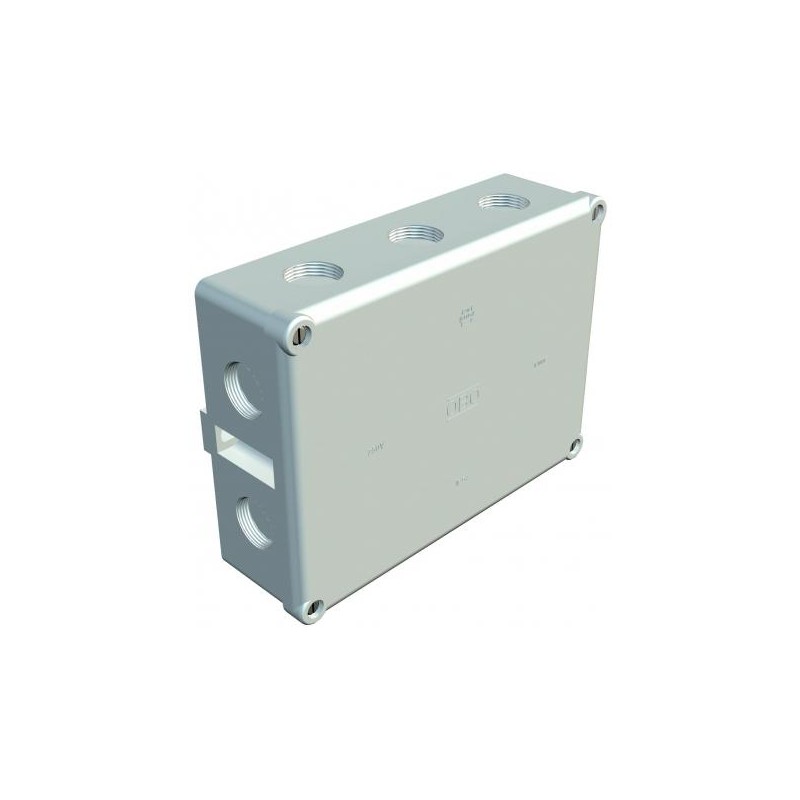

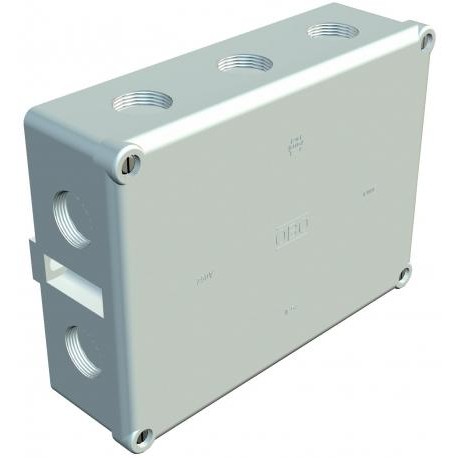

OBO BETTERMANN B 12 M 2002523 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2002523 OBO BETTERMANN BOX B 12 M EMPTY GR DUROPLAST

Reference: B 12 M

Code: 2002523

Manufacturer: OBO BETTERMANN

Description:

BOX B 12 M EMPTY GR DUROPLAST
Junction box, B 12 M, with thread. Protection rating IP54, nominal voltage 660 V, nominal cross-section 16 ÷ mm², two fastening holes for screws up to 6 mm Ø on the outside of the box. Four cover screws, 10 break-out entries with thread M25 x 1.5.Clear internal dimensions: 178x126x57 mmB 12 empty: without terminal strip

Categories:

  • Connection devices > Box/housing for surface mounting on the wall/ceiling
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 23,61 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Protection rating IP54, nominal voltage 660 V, nominal cross-section 16 mm2, two fastening holes for bolts up to 6 mm Ø on the outside of the box. Four cover bolts, 10 break-out entries with thread M25 x 1.5.
Clear internal dimensions: 178x126x57 mm.

DATASHEET - PDF

Title
Size
Type
2002523 OBO BETTERMANN BOX B 12 M EMPTY GR DUROPLAST
51 Kbytes
PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN
31 Mbytes
PDF CATALOGUE FASTENING MATERIALS OBO EN
18 Mbytes
