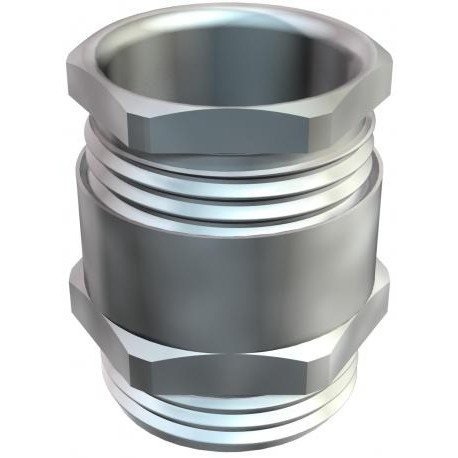

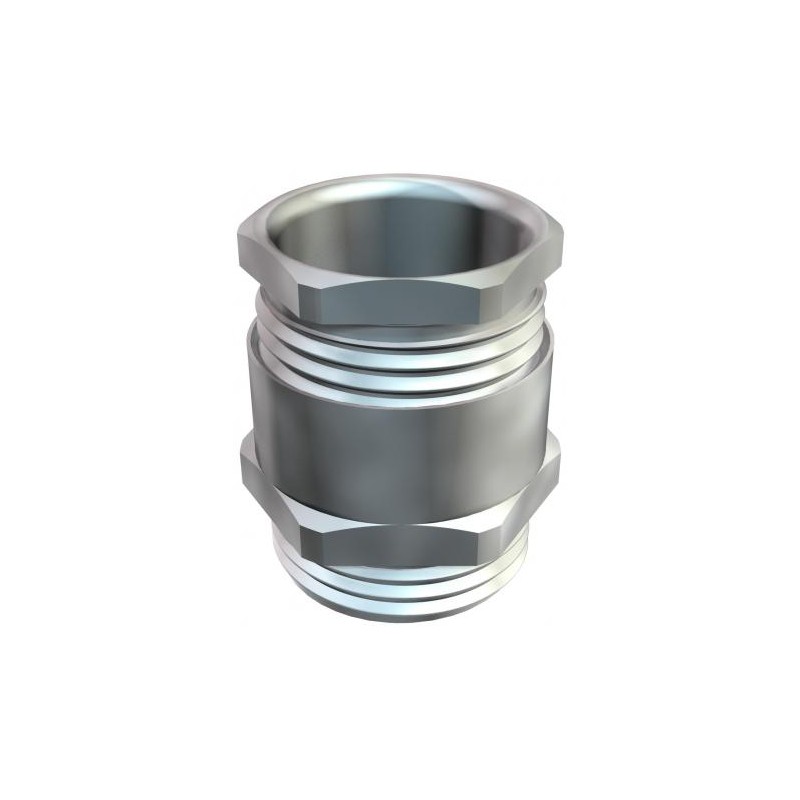

162 MS PG48 2082632 OBO BETTERMANN 162 MS PG48 2082632 Cable gland, PG cutting ring
162 MS PG48
2082632
OBO BETTERMANN
5
162 MS PG48 2082632 Cable gland, PG cutting ring
Cone cable gland, PG thread, cutting ring, nickel-plated. Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.Pressure rings made of electrogalvanised and transparently passivated steel.NR/SBR sealing ring.Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.With cutting ring.* Prices according to DEL notation.
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7986 kg CO2e / 1 Piece |
| Dimension | PG48 |
| Dimension E | 69 mm |
| Dimension L | 44 mm |
| Dimension L max. | 44 mm |
| Dimension L1 | 10 mm |
| Dimension L2 | 23 mm |
| Dimension L3 | 6 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Impact-resistant | no |
| Material | Brass |
| Permitted temperature range, max. | 65 °C |
|---|---|
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP54 |
| Sealing area D, max. | 47 mm |
| Sealing area D, min. | 36 mm |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Surface | Nickel-plated |
| Thread | Pg 48 |
| Thread length | 10 mm |
| Thread type | PG |
| Type of seal | Cuttable sealing ring |
| WAF 1 | 64 mm |
| WAF 2 | 60 mm |
| With locknut | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
