1486292 OBO BETTERMANN FIXING TO BEAM SSP 20-40 M8 V2A
SSP 20-40 M8 A2
1486292
OBO BETTERMANN
25
FIXING TO BEAM SSP 20-40 M8 V2A

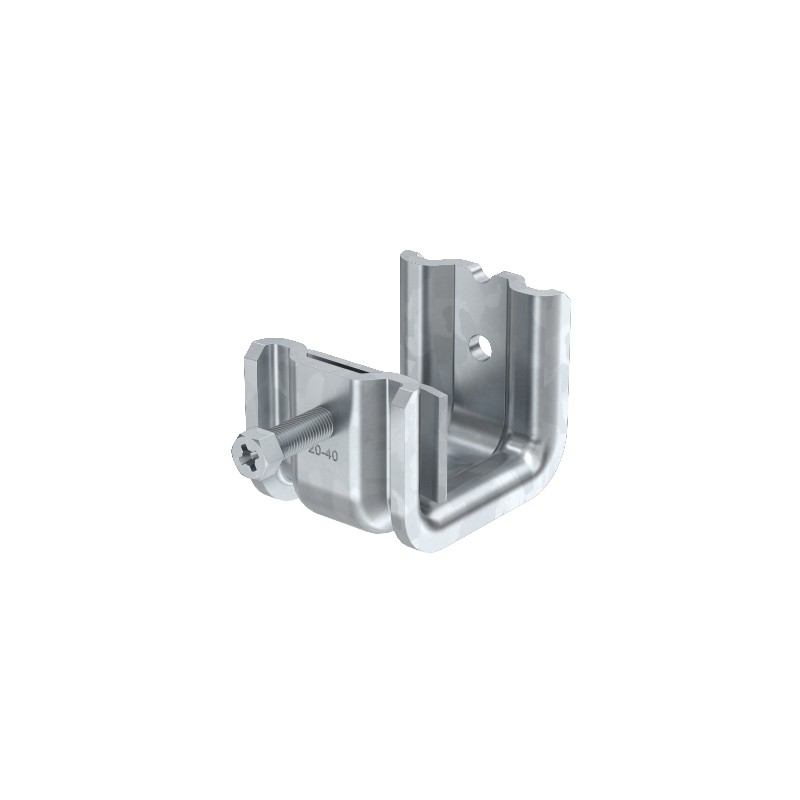

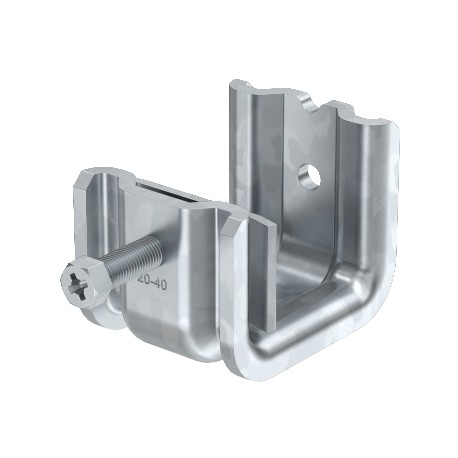

Beam clamp SSP 20-40, VA M8. This type of support clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8).The hexagonal bolt has a WAF of 10 mm. In the clip element also two more M8 threads are introduced, for example to attach threaded rods.
Fasteners > Fixing clamp
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Breaking load F1 | 1,4 kN |
|---|---|
| Breaking load F2 | 1,3 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3105 kg CO2e / 1 Piece |
| Connection type/component | Thread |
| Dimension | 20-40mm |
| Dimension B | 48 mm |
| Dimension H | 65 mm |
| Dimension L | 47 mm |
| Fastening type | Clamp |
| Flange thickness F max. | 40 mm |
|---|---|
| Flange thickness F min. | 20 mm |
| Hinge, adjustable | no |
| Hinged | no |
| Material | Stainless steel 1.4301 |
| Suitable for metric threaded rod | 8 |
| Surface | Bright, treated |
| Thread | M8 |
| Thread metric | 8 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
| 1486292 OBO BETTERMANN FIXING TO BEAM SSP 20-40 M8 V2A | 57 Kbytes |
|
