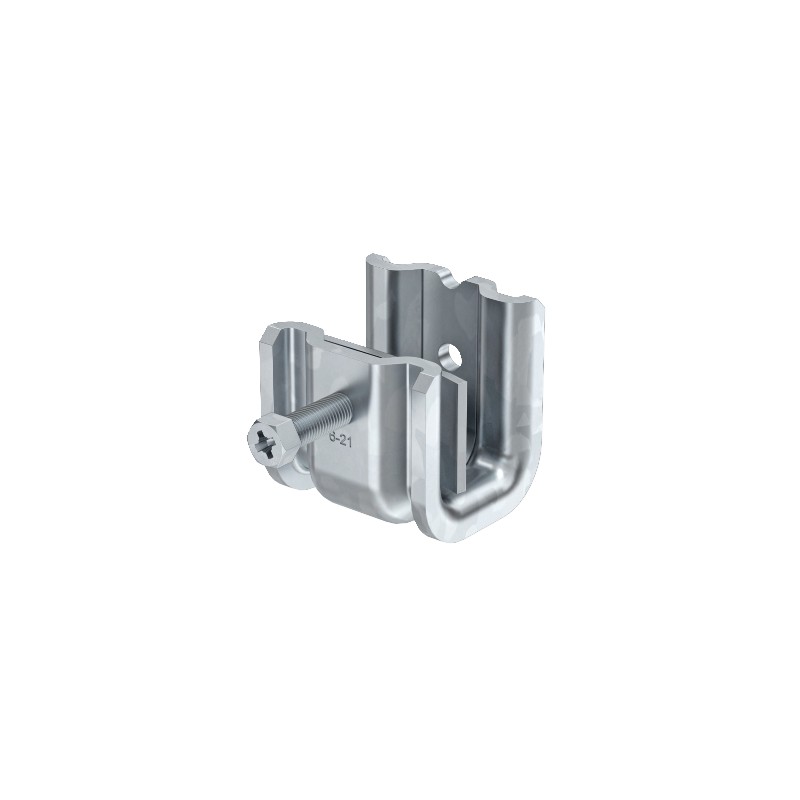

OBO BETTERMANN SSP 6-21 M8 A2 1486284 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

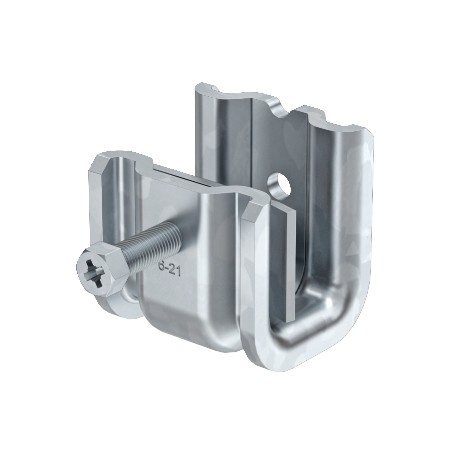

1486284 OBO BETTERMANN FIXING TO BEAM SSP 6-21 M8 V2A

Reference: SSP 6-21 M8 A2

Code: 1486284

Manufacturer: OBO BETTERMANN

Description:

FIXING TO BEAM SSP 6-21 M8 V2A
Beam clamp SSP 6-21, VA M8. This type of support clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8).The hexagonal bolt has a WAF of 10 mm.In the clip element also two more M8 threads are introduced, for example to attach threaded rods.

Categories:

  • Fasteners > Fixing clamp
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 374,71 €

Unit Price: 14,9884 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Breaking load F11,75 kN
Breaking load F21,5 kN
CO2 Footprint (GWP) Cradle-to-Gate1,1494 kg CO2e / 1 Piece
Connection type/componentThread
Dimension6-21mm
Dimension B48 mm
Dimension H46 mm
Dimension L47 mm
Fastening typeClamp
Flange thickness F max.21 mm
Flange thickness F min.6 mm
Hinge, adjustableno
Hingedno
MaterialStainless steel 1.4301
Suitable for metric threaded rod8
SurfaceBright, treated
ThreadM8
Thread metric8
