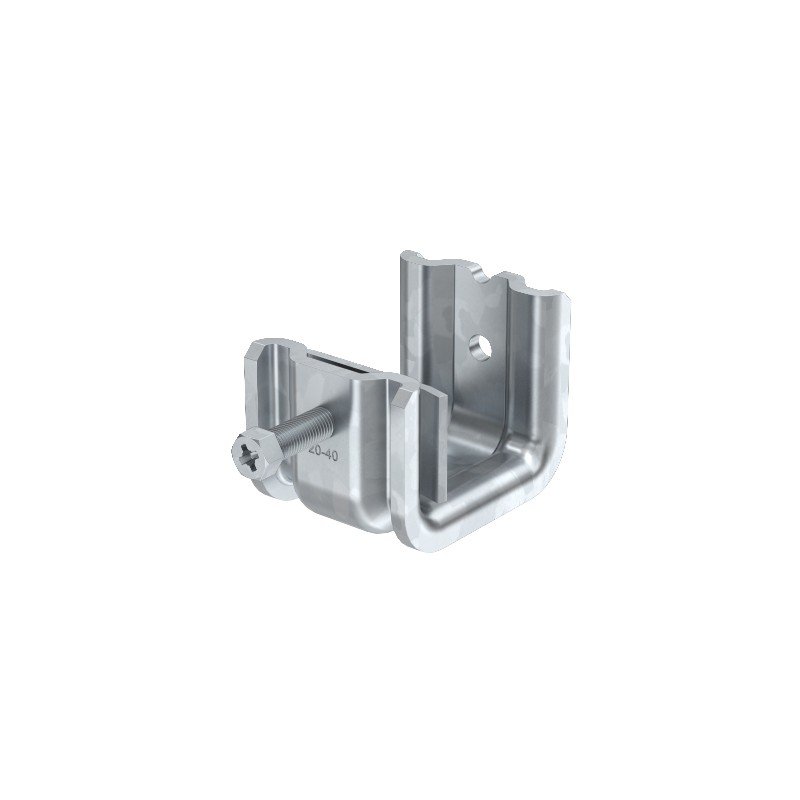

OBO BETTERMANN SSP 20-40 M6 A2 1486242 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

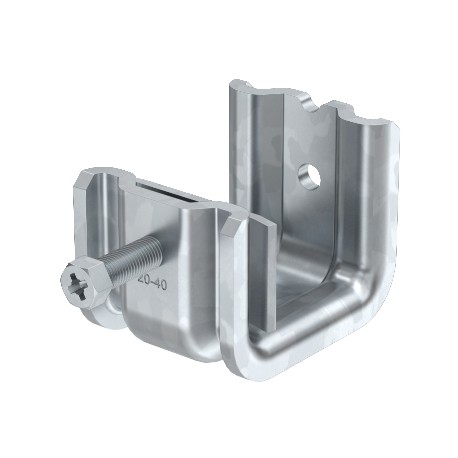

SSP 20-40 M6 A2 1486242 OBO BETTERMANN FIXING TO BEAM SSP 20-40 M6 V2A

Reference: SSP 20-40 M6 A2

Code: 1486242

Manufacturer: OBO BETTERMANN

Description:

FIXING TO BEAM SSP 20-40 M6 V2A
Fixing to SSP 20-40 M6 A2 beam, reinforced version 20-40mm Stainless steel, A2, Polished, with subsequent treatment
Fixing to SSP 20-40, VA M6 beam. This type of clamp slides over the bracket and is attached to it, or to flat steel, using a pressure bucket and screw (M8). The hex head screw has a key width of 10 mm. Two other M6 threads are also installed in the clamp body for fastening e.g. threaded rods.

Categories:

  • Fasteners > Fixing clamp
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 392,75 €

Unit Price: 15,71 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

This type of beam clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8). The hexagonal bolt has a WAF of 10 mm In the clip element, two additional M6 threads are also incorporated, to fix threaded rods, for example.

ETIM for 1486242 Fixings and fasteners (EC000464)

Feature nameType of fastening (EF002442)
Feature valueClamping
Feature nameConnection type construction part (EF004374)
Feature valueThread
Feature nameThread size (metric) (EF003563)
Feature value6
Feature nameSuitable for flange thickness (EF006596)
Feature value20 mm
Feature nameHinging (EF001076)
Feature valueNo
Feature nameHinge adjustable (EF002645)
Feature valueNo
Feature nameMaterial (EF002169)
Feature valueStainless steel
Feature nameSurface protection (EF000139)
Feature valueUntreated
