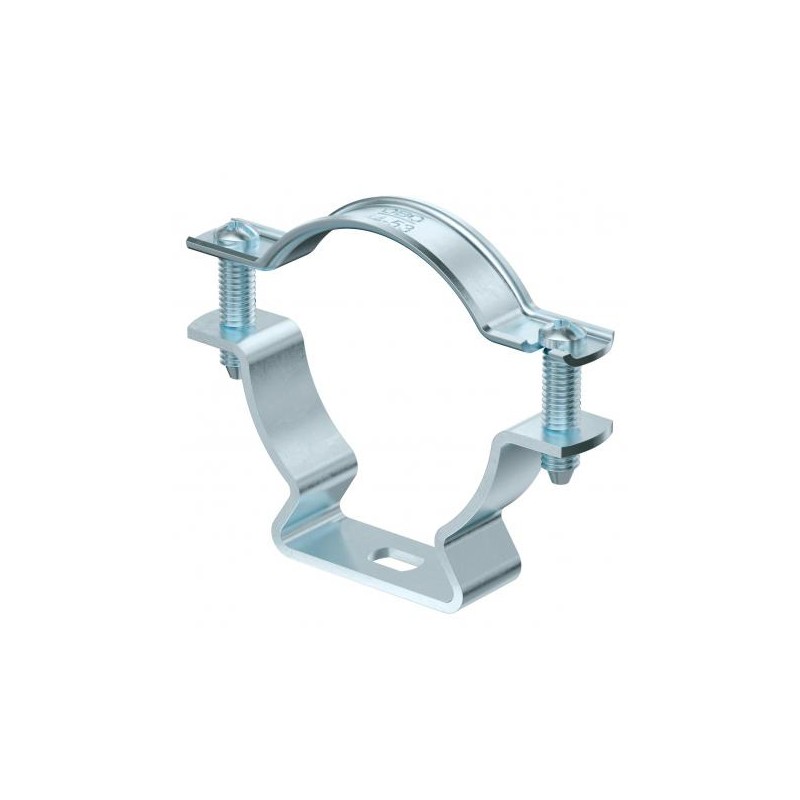

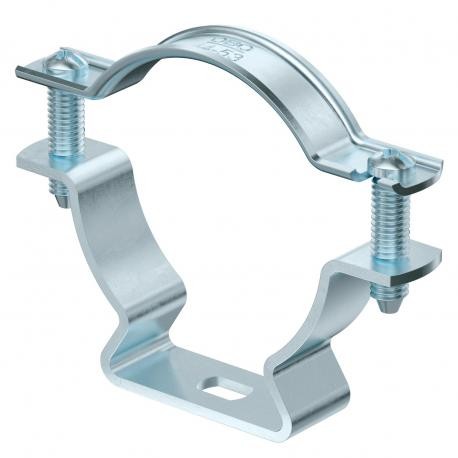

1362784 OBO BETTERMANN Distance saddle with slot

Reference: ASL 733 53 G

Code: 1362784

Manufacturer: OBO BETTERMANN

Description:

Distance saddle with slot
Spacer clip 733 G. Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.

Categories:

  • Low-voltage industrial components > DC-power supply
  • OBO BETTERMANN > VBS Connection and fastening systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 56,48 €

Unit Price: 2,824 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Clamping range D, max.53 mm
Clamping range D, min.44 mm
CO2 Footprint (GWP) Cradle-to-Gate0,1683 kg CO2e / 1 Piece
Dimension44-53mm
Dimension A84 mm
Dimension b16 mm
Dimension B70 mm
Dimension D53 mm
Dimension d max.53 mm
Dimension d min.44 mm
Dimension L10 mm
Dimension s29,5 mm
Dimension t1 (mm)1,5
Dimension t2 (mm)2
Dimension x13,5 mm
Distance to the wallyes
Fastening typeScrew hole
For diameter44 - 53
Halogen-freeyes
Maintain electrical functionsyes
MaterialSteel
Material thickness1,5 mm
Number of cables/pipes1
Plastic-coveredno
SurfaceElectrogalvanized
UV-resistantyes
Version forClosed
