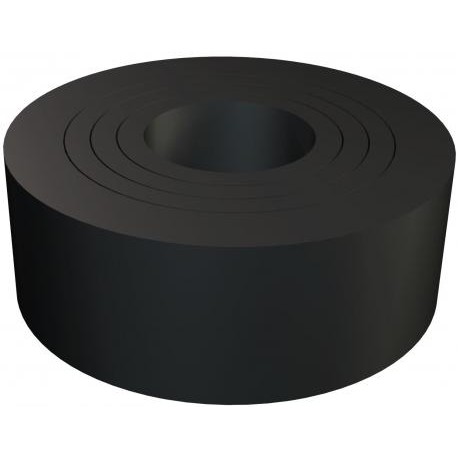

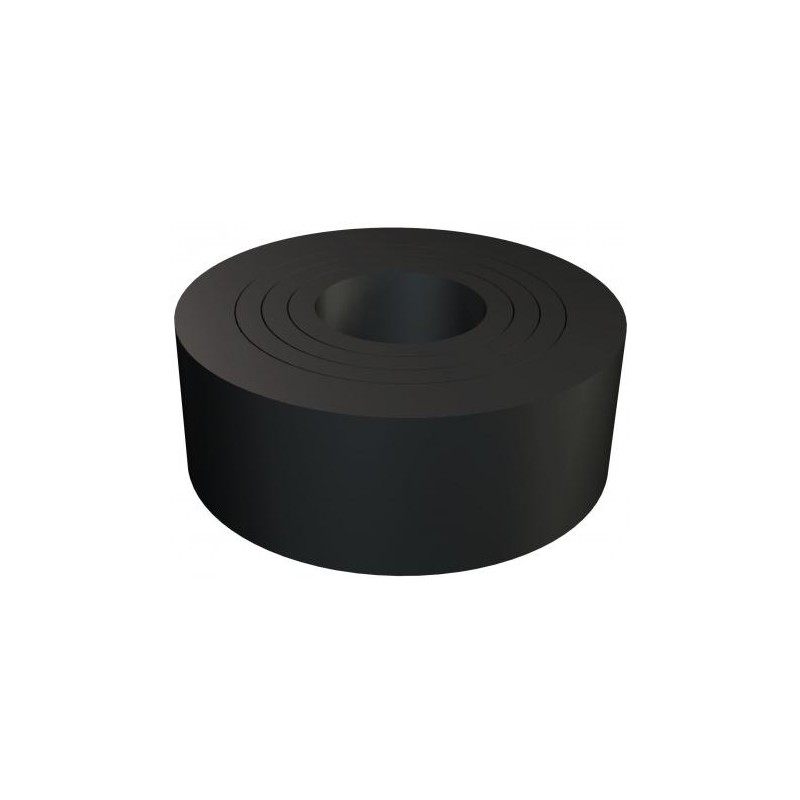

107 B PG13.5 2029138 OBO BETTERMANN GASKET SECCIONABLE 107 B PG13.5
107 B PG13.5
2029138
OBO BETTERMANN
100
GASKET SECCIONABLE 107 B PG13.5
Sectional packing 107 B PG13.5 PG13.5 black
Cutting ring. Rubber cutting ring (cuttable sealing ring) to DIN 46320 for cone cable gland.
Cable and wire entry systems > Cut-out sealing ring for cable inlet
VBS Connection and fastening systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0073 kg CO2e / 1 Piece |
|---|---|
| Colour | Black |
| Dimension | PG13,5 |
| Dimension D1 | 7,5 mm |
| Dimension D2 | 18,3 mm |
| Dimension D3 | 10 mm |
| Dimension D4 | 12,5 mm |
| Dimension D5 | 15 mm |
|---|---|
| Dimension H | 6 mm |
| Material | Rubber mixture |
| Sealing area D, max. | 12,5 mm |
| Sealing area D, min. | 7,5 mm |
| Size | Pg 13,5 |
| Size | M20 |
| Feature Name | Feature Value |
|---|---|
| Suitable for cable diameter (EF005466) | 7.5 mm |
| Outer diameter of ring (EF005663) | 18.3 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE CONNECTION AND ROUTING SYSTEMS OBO EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE FASTENING MATERIALS OBO EN.pdf | 18 Mbytes |
|
