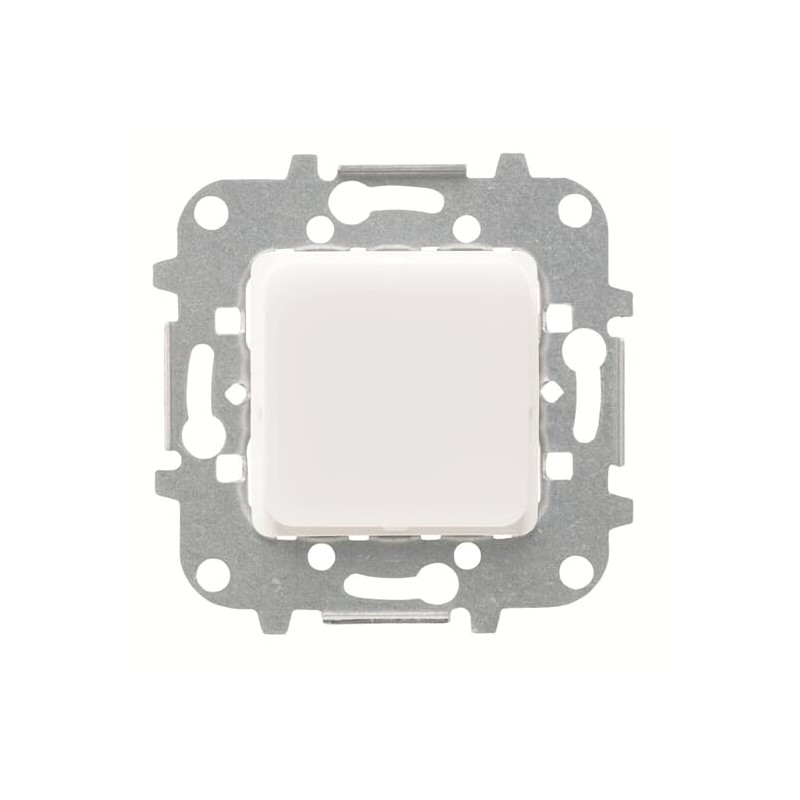

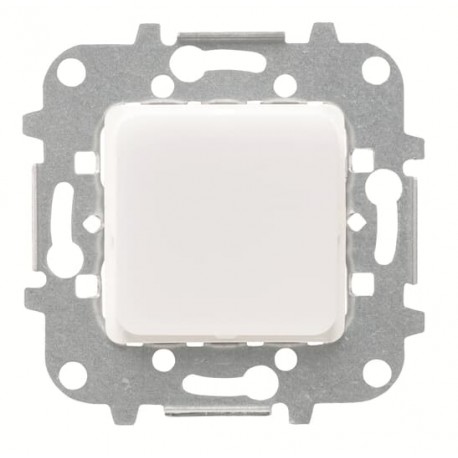

2CLA818010A1001 8180.1 NIESSEN Beacon light
2CLA818010A1001
8180.1
NIESSEN
Beacon light
Indicator light
Rated voltage: 127-230 Vac / 50-60 HzLamp: white LEDLuminous flux: > 2 lumen at 1 meterWithout fixing claws Cover plate code: 8581 without pictogram or 8581.XX with pictogram, 8481 (optional 8481.1 pictograms), 8281 (optional 8281.1 pictograms) & 5581 (optional 5581.1 pictograms)
Domestic switching devices > Information light signal for domestic switching devices
Industrial
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- 8180.1
- Product ID:
- 2CLA818010A1001
- EAN:
- 8427238063188
- Catalog Description:
- Signaling LED not exchangeable / White No color
- Long Description:
- Rated voltage: 127-230 Vac / 50-60 Hz
Lamp: white LED
Luminous flux: > 2 lumen at 1 meter
Without fixing claws
Cover plate code: 8581 without pictogram or 8581.XX with pictogram, 8481 (optional 8481.1 pictograms), 8281 (optional 8281.1 pictograms) & 5581 (optional 5581.1 pictograms)
Installation
- Instructions and Manuals:
- 2CLX818019A1001
Technical
- Data Sheet, Technical Information:
- 9AKK107046A0356
- Rated Voltage (Ur):
- 230 V
- Design Range:
- Platform 8100
Alba
Sky Niessen
- Lamp Type:
- LED not exchangeable
- Mounting Type:
- Flush Mounted
- Type of Fastening:
- Screw
- Surface Finishing:
- Untreated
Matt
- Material:
- Thermoplastic
Plastic
- Color:
- No color
- Lamp Color:
- White
- Number of Batteries:
- 0
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC818010A1001
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 0.073m
- Product Net Height:
- 0.052m
- Product Net Depth / Length:
- 0.073m
- Product Net Weight:
- 0.068kg
- Built-In Depth (t2):
- 40 mm
Ordering
- Replaced Product ID (OLD):
- 2CL0818010
Certificates and Declarations
- Declaration of Conformity - CE:
- 9AKK107680A8230
Classifications
- ETIM 8:
- EC000064 - Information light signal for domestic switching devices
- ETIM 9:
- EC000064 - Information light signal for domestic switching devices
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85365080
- UNSPSC:
- 39122200
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA818010A1001 8180.1 EN_2CLA818010A1001.pdf | 99 Kbytes |
 |
