87141137
MURRPLASTIK
1

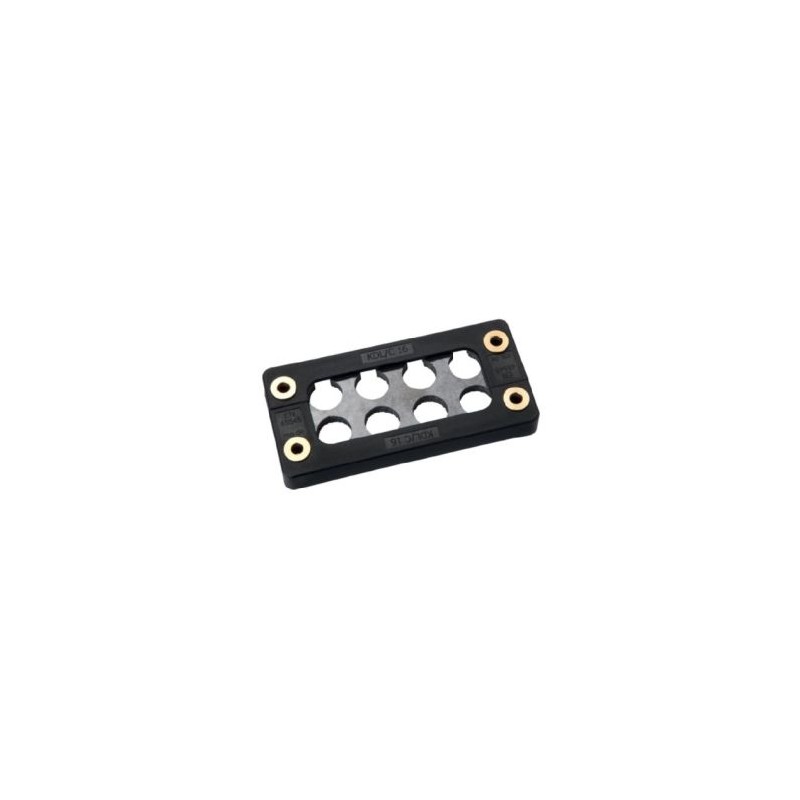

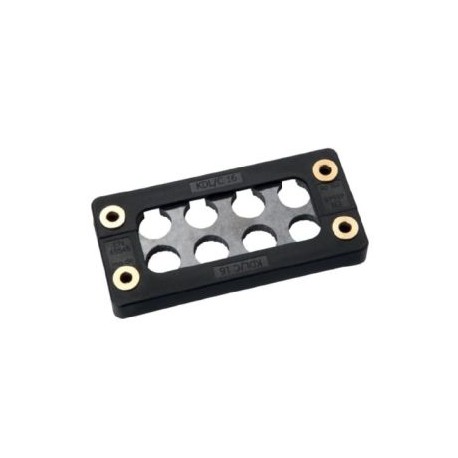

Cable entry systems and holders Type RAS room integrity set Black
Wall plates and cable glands
* Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
The RAS Room integrity set is used in conjunction with the cable entry KDL / C or KDL / D and KDL / H. Because the system can be split apart the RAS room integrity system can be completely retrofitted on the inside of the housing. The fire protection mat reacts at temperatures exceeding 160°C by expanding and thereby closing off the opening completely fire resistant.
Special benefits of the RAS room integrity system are:
Approved for railway technology (EN 45545-2 / 3x HL3)
Room integrity (firewall)
Completely splittable system
Quick and easy assembly
Labs free
UV-resistant
Polyamide 6
EU railway approval
Type | Order No. | Colour | Suitable for | Pack qty. | Installation height mm | A mm | B mm | ||
---|---|---|---|---|---|---|---|---|---|
RAS 24/12 | 87141111 | Black | KDL/D 24/12 | 1 | 15 | 148 | 58 | ||
RAS 24/9 | 87141123 | Black | KDL/D 24/9 | 1 | 15 | 148 | 58 | ||
RAS 24/8 | 87141119 | Black | KDL/D 24/8 | 1 | 15 | 148 | 58 | ||
RAS 24/4 | 87141115 | Black | KDL/D 24/4 | 1 | 15 | 148 | 58 | ||
RAS 16/8 | 87141127 | Black | KDL/D 16/8 | 1 | 15 | 121 | 58 | ||
RAS 16/7 | 87141131 | Black | KDL/D 16/7 | 1 | 15 | 121 | 58 | ||
RAS 16/3 | 87141135 | Black | KDL/D 16/3 | 1 | 15 | 121 | 58 | ||
RAS 10/6 | 87141137 | Black | KDL/D 10/6 | 1 | 15 | 101 | 58 | ||
RAS 10/5 | 87141143 | Black | KDL/D 10/5 | 1 | 15 | 101 | 58 | ||
RAS 10/2 | 87141140 | Black | KDL/D 10/2 | 1 | 15 | 101 | 58 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
