> MURRPLASTIK>Wall plates and cable glands>KDP/E 24/12 87301320 MURRPLASTIK Cable entry systems and holders KDP/EN 24 cable entry plate Black
Previous Product Next Product

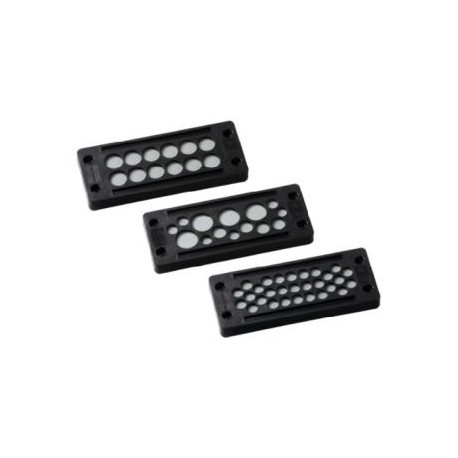

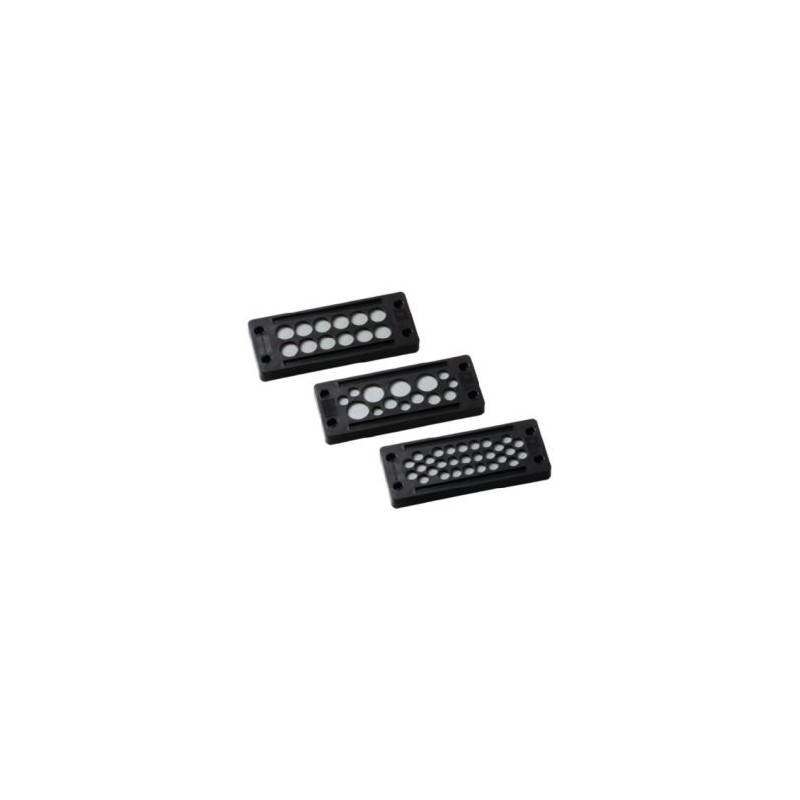

KDP/E 24/12 87301320 MURRPLASTIK Cable entry systems and holders KDP/EN 24 cable entry plate Black View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDP/E 24/12 87301320 MURRPLASTIK Cable entry systems and holders KDP/EN 24 cable entry plate Black

87301320

MURRPLASTIK

Cable entry systems and holders KDP/EN 24 cable entry plate Black

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


3. Generation of our cable entry plates, plastic, square, with improved clip-in function and one instead of two elastomer plates.

Economical connection technology for tool-free wiring of equipment and machinery. Wherever the rapid and economical introduction of cables and/or pneumatic hoses in confined spaces is essential. The alternative to cable fittings. Suitable for standard cut-outs for 24-pin Harting and Wieland connectors. For snap-in fastening and/or screwing in place.

Snap-in at plate thicknesses of 1.5 to 2.0 mm

Lower strain relief

Introduction of larger cable diameters is possible

Introduction from both sides is possible

Labs free

UV-resistant

-30°C – 70°C

Polyamide 6.6TPU / EPDM

IP 65

Type Order No. Colour No. Openings Openings Quantity / Ø mm Pack qty. Installation height mm A mm B mm a mm b mm c mm d mm e mm
KDP/E 24/11 87301310 Black 11
4 x 3.00 – 6.50
4 x 5.00 – 9.20
3 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/E 24/12 87301320 Black 12
12 x 8.00 – 12.00
1 15 59 147 112 36 65 16 5.5
KDP/E 24/13 87301330 Black 13
2 x 3.00 – 5.50
6 x 4.10 – 8.10
4 x 9.00 – 14.00
1 x 14.00 – 20.00
1 15 59 147 112 36 65 16 5.5
KDP/E 24/14, PU 100 87301341 Black 14
6 x 3.00 – 6.50
4 x 5.00 – 9.20
4 x 9.60 – 15.90
100 15 59 147
KDP/E 24/14 87301340 Black 14
6 x 3.00 – 6.50
4 x 5.00 – 9.20
4 x 9.60 – 15.90
1 15 59 147 112 36 65 16 5.5
KDP/E 24/17 87301350 Black 17
17 x 5.00 – 9.20
1 15 59 147 112 36 65 16 5.5
KDP/E 24/17-1 87301352 Black 17
11 x 3.00 – 6.50
1 x 4.10 – 8.10
5 x 8.00 – 12.50
100 15 59 147
KDP/E 24/17-1 87301351 Black 17
11 x 3.00 – 6.50
1 x 4.10 – 8.10
5 x 8.00 – 12.50
1 15 59 147 112 36 65 16 5.5
KDP/E 24/22 87301361 Black 22
16 x 3.00 – 6.50
4 x 5.00 – 9.20
2 x 8.00 – 12.50
100 15 59 147
KDP/E 24/22 87301360 Black 22
16 x 3.00 – 6.50
4 x 5.00 – 9.20
2 x 8.00 – 12.50
1 15 59 147 112 36 65 16 5.5
KDP/E 24/23, PU 100 87301371 Black 23
23 x 4.10 – 8.10
100 15 59 147
KDP/E 24/23 87301370 Black 23
23 x 4.10 – 8.10
1 15 59 147 112 36 65 16 5.5
KDP/E 24/29, PU 100 87301381 Black 29
29 x 3.00 – 6.50
100 15 59 147
KDP/E 24/29 87301380 Black 29
29 x 3.00 – 6.50
1 15 59 147 112 36 65 16 5.5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
