> MURRPLASTIK>Wall plates and cable glands>KDL/E 24/10 87121020 MURRPLASTIK Cable entry systems and holders Cable entry system, type KDL/E For standard cut
Previous Product Next Product

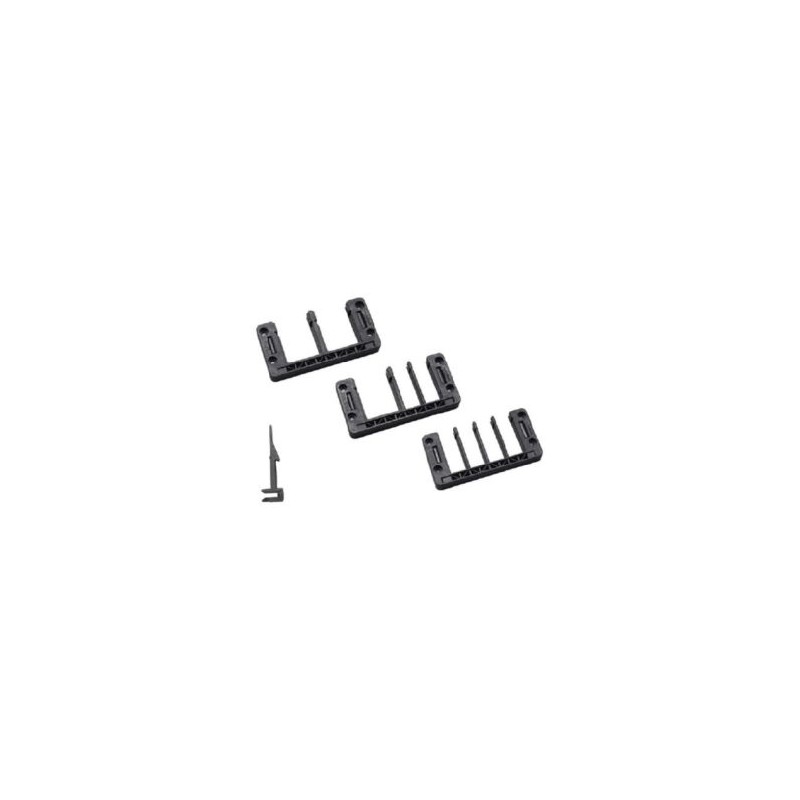

KDL/E 24/10 87121020 MURRPLASTIK Cable entry systems and holders Cable entry system, type KDL/E For standard cut View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

KDL/E 24/10 87121020 MURRPLASTIK Cable entry systems and holders Cable entry system, type KDL/E For standard cut

87121020

MURRPLASTIK

Cable entry systems and holders Cable entry system, type KDL/E For standard cut-out size 24

KDL/E 24/10, sw

More details


Wall plates and cable glands

Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Often bought together

▲

Best sellers

▲

More info

▲


The KDL/E represents the 3rd generation of Murrplastik cable entry system.

Even quicker mounting of pre-assembled cables

Snap in, meaning screwing on is no longer absolutely necessary

Catch hook for 1.5 – 2.0 mm plate thickness included with delivery, additional catch hooks for up to 4.1 mm plate thickness available

Fits standard cut-outs for connectors (e.g. Harting, Wieland and Rittal).

EMC solution with discharge plate, simple realisation

Matching grommets: KDT/xE

Labs free

UV-resistant

-40°C – 80°C

Polyamide 6.6

V0

IP 54

CSA approval

UR approval

Type Order No. Colour No. of openings small / large for Ø mm Pack qty. Installation height mm A mm B mm a mm b mm c mm d mm e mm

For standard cut-out size 16

KDL/E 16/2 87121010 Black 0 / / 2 16 – 31 1 15.5 116 58 86 36 51.5 16 5.5
KDL/E 16/4 87121011 Black 4 / / 0 3 – 16 1 15.5 116 58 86 36 51.5 16 5.5
KDL/E 16/5 87121012 Black 4 / / 1 3 – 31 1 15.5 116 58 86 36 51.5 16 5.5
KDL/E 16/8 87121014 Black 8 / / 0 3 – 16 1 15.5 116 58 86 36 51.5 16 5.5

For standard cut-out size 24

KDL/E 24/4 87121016 Black 2 / / 2 3 – 31 1 15.5 146 58 112 36 65 16 5.5
KDL/E 24/7 87121018 Black 6 / / 1 3 – 31 1 15.5 146 58 112 36 65 16 5.5
KDL/E 24/10 87121020 Black 10 / / 0 3 – 16 1 15.5 146 58 112 36 65 16 5.5

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf 7 Mbytes
