KAF/SF-180 EMV 87201248 MURRPLASTIK Cable entry systems and holders Type KAF/SF cable fixing plate
87201248
MURRPLASTIK
Cable entry systems and holders Type KAF/SF cable fixing plate
KAF/SF-180-EMV, pie de apriete
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

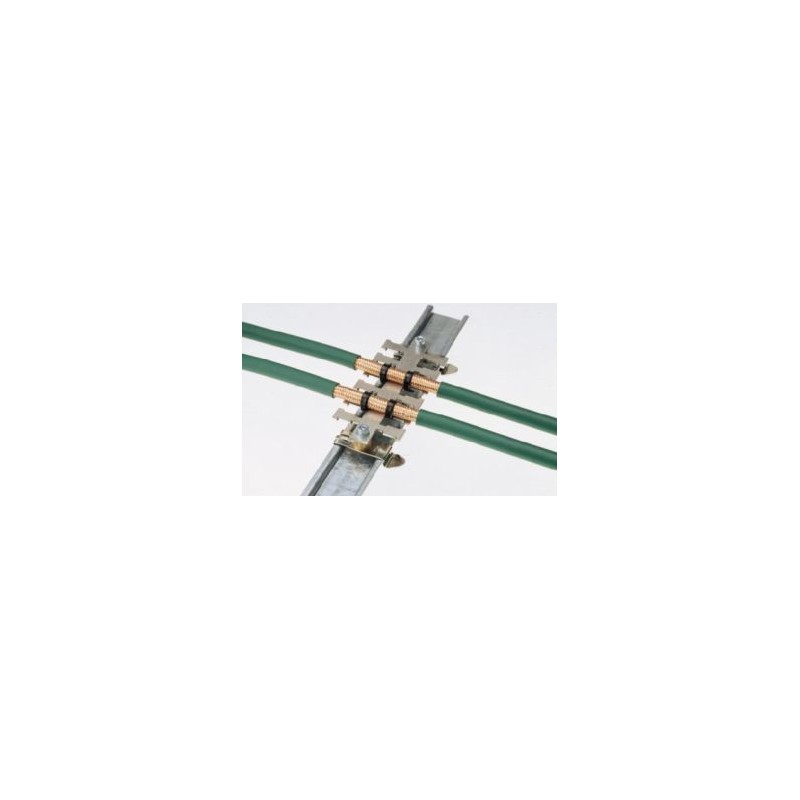

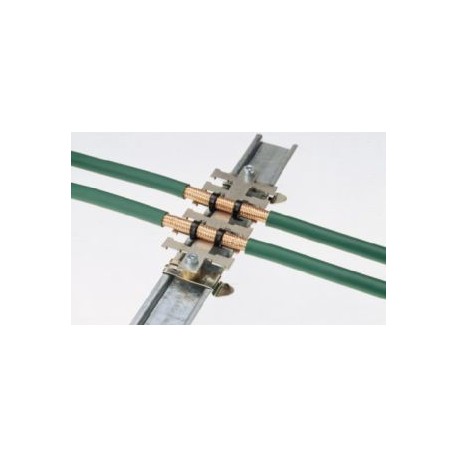

▲The cable fixing plate KAF/SF is suitable for discharging interferences which may occur on cable sheaths. The earth/ground contact is provided through a special snap-on foot for the 35 mm top-hat rail (EN50022). Stripping the cable in the area of the KAF/SF and clamping in the KAF/SF achieves a contact to the KAF/SF. The snap-on foot of the KAF/SF produces a low-resistance ground contact. The use of two connecting points ensures a good discharge regardless of the position of the cable on the KAF/SF.
Fits on a 35 mm top-hat rail (EN50022)
Simply snapped on
V2A
GL approval
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
