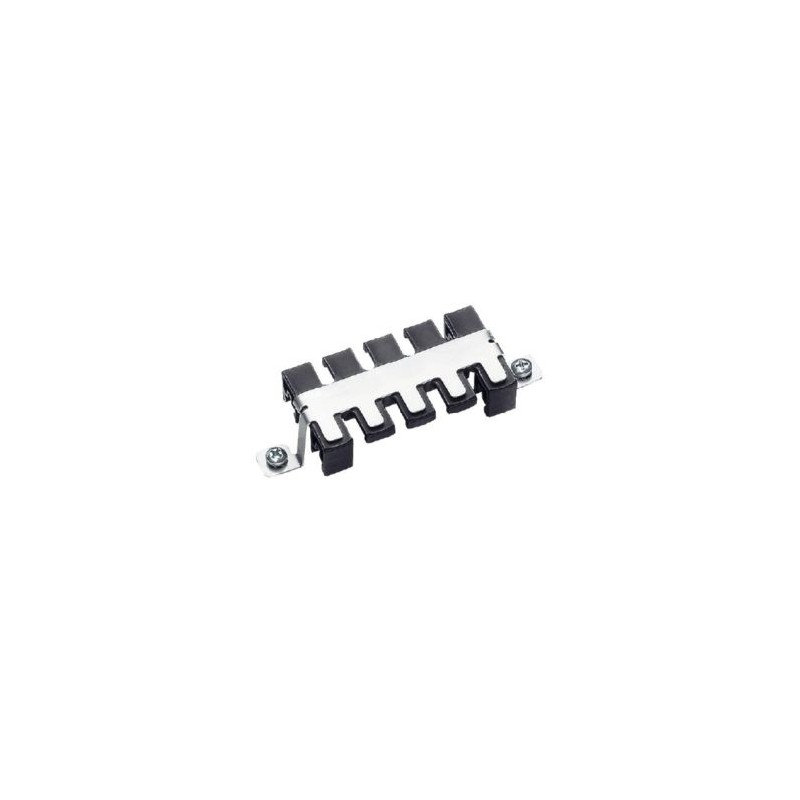

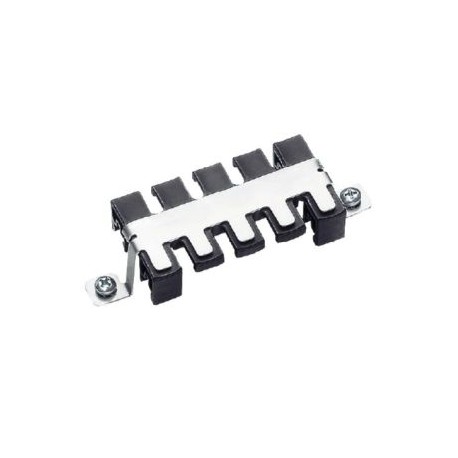

KAF/K-75-EMV 87201414 MURRPLASTIK Cable entry systems and holders Type KAF/K cable fixing plate
87201414
MURRPLASTIK
Cable entry systems and holders Type KAF/K cable fixing plate
KAF/K-75-EMV
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The KAF/K-EMV cable fixing plate consists of a plastic carrier with a fitted V2A stainless steel discharge plate. Integrated clamps ensure quick and safe fastening, both on the top hat- or C-rail. The ground contact occurs through the lateral brackets. The use of two connecting points ensures a good discharge.
Approved for railway technology (EN 45545-2)
-40°C – 125°C, transient / short term 140°C
Polyamide 6.6V2A
V0
EU railway approval
GL approval
| Type | Order No. | Quantity of cables | Installation height mm | A mm | B mm | c mm | d mm | Pack qty. | ||
|---|---|---|---|---|---|---|---|---|---|---|
| KAF/K-75-EMV | 87201414 | 5 | 26.6 | 109 | 23 | 96.5 | 4.5 | 1 | ||
| KAF/K-140-EMV | 87201418 | 9 | 26.6 | 173 | 23 | 157 | 4.5 | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
