KAF/EK-EMV 165 87201230 MURRPLASTIK Cable entry systems and holders Cable fixing plate, type KAF/EK
87201230
MURRPLASTIK
Cable entry systems and holders Cable fixing plate, type KAF/EK
KAF-EK-165-EMV, brida de puesta a tierra
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info

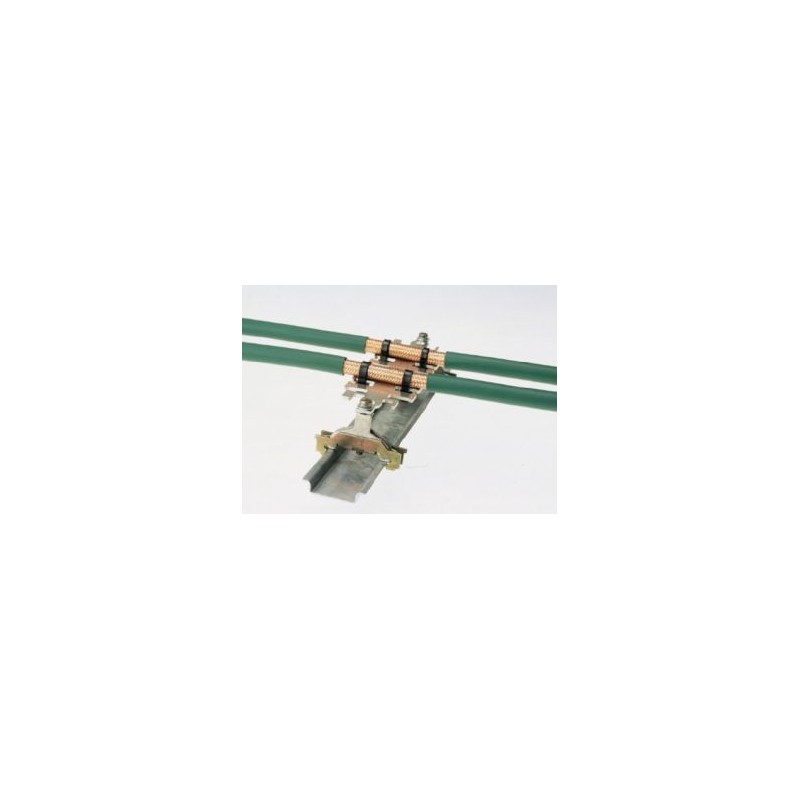

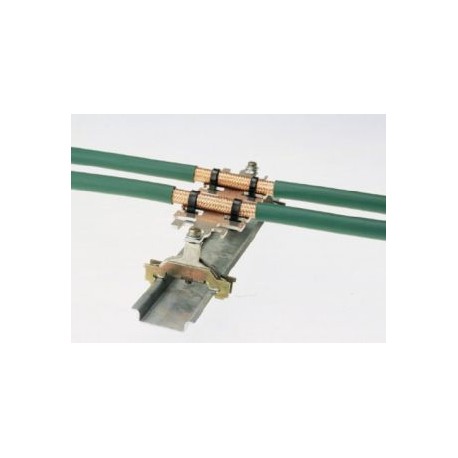

▲The KAF/EK-EMV cable fixing plate consists of a V2A stainless steel plate for the direct discharge of any interferences on the cable sheaths. Stripping the cable in the area of the cable fixing plate and fastening by means of cable ties ensures contact to the cable fixing plate. The ground contact is provided through a special screw stand for the 35 mm hat rail (EN50022). The KAF/EK is characterised by its extremely fast and easy assembly.
Fits on a 35 mm top-hat rail (EN50022)
V2A
GL approval
| Type | Order No. | Quantity of cables | Installation height mm | A mm | B mm | c mm | Pack qty. | ||
|---|---|---|---|---|---|---|---|---|---|
| KAF/EK-EMV 140 | 87201228 | 6 | 29 | 155 | 41.5 | 146 | 1 | ||
| KAF/EK-EMV 165 | 87201230 | 10 | 29 | 179 | 41.5 | 169 | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
