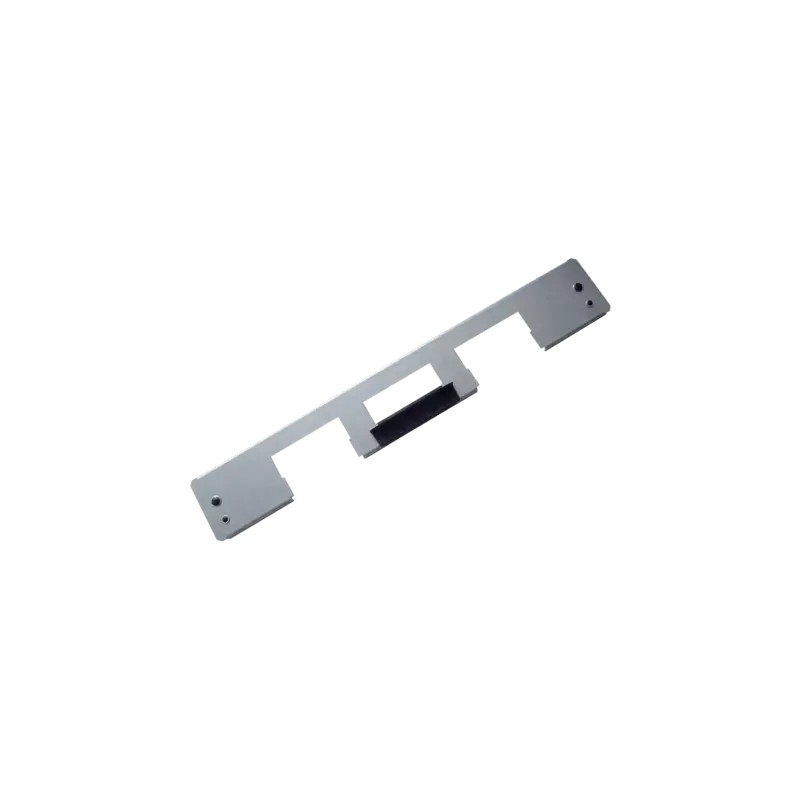

87821092 MURRPLASTIK Cable entry systems and holders Control cabinet floor plate, type SBB Replacement part:..
87821092
MURRPLASTIK
5
Cable entry systems and holders Control cabinet floor plate, type SBB Replacement part: Locking plates
VP/N 24, sw
Control cabinet floor plate, type SBB
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The control cabinet floor plate can be installed in Rittal (type CM, TS8 and VX) control cabinets. Up to 5 cable entry systems can be installed.
The scope of delivery of the switch cabinet base plate (type SBB) includes the closure plates type VP 24 or VP/N 24. These are required to lock the floor sheeting into place.
The SBB-VX control cabinet base plate is supplied without closing plates.
Unnecessary cut-outs can be covered with the BP/H 24 blanking plate.
Protection category IP 54 when properly assembled as a system (control cabinet + floor plate)
Can be installed entirely retrospectively
Earthing points (M6 and M8) available on both side
-40°C – 125°C
Galvanised sheet steelPolyamide 6.6
V0
IP 54
| Type | Order No. | For control cabinet width mm | No. Holder slots | Cut-out | Plate thickness mm | A mm | B mm | MOQ qty. | Fussnote Variante 2 (unter Var) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
and M5 threads | |||||||||||
| SBB-M5 420-2000 | 87821012 | 1000 | 2x 24-pin | TS8 | 1.5 | 424 | 100 | 1 | |||
| SBB-M5 460-2000 | 87821022 | 600 | 2x 24-pin | TS8 | 1.5 | 464 | 100 | 1 | |||
| SBB-M5 520-3000 | 87821032 | 1200 | 3x 24-pin | TS8 | 1.5 | 524 | 100 | 1 | |||
| SBB-M5 660-3000 | 87821042 | 800 | 3x 24-pin | TS8 | 1.5 | 664 | 100 | 1 | |||
| SBB-VX-M5 440 | 87821013 | 1000 | 2x 24-pin | VX | 1.5 | 440 | 100 | 1 | Without VP, | ||
| SBB-VX-M5 490 | 87821023 | 600 | 2x 24-pin | VX | 1.5 | 490 | 100 | 1 | Without VP, | ||
| SBB-VX-M5 540 | 87821033 | 1200 | 3x 24-pin | VX | 1.5 | 540 | 100 | 1 | Without VP, | ||
| SBB-VX-M5 690 | 87821043 | 800 | 3x 24-pin | VX | 1.5 | 690 | 100 | 1 | Without VP, | ||
with through-hole | |||||||||||
| SBB 420 - 2000 | 87821010 | 1000 | 2x 24-pin | TS8 | 1.5 | 424 | 100 | 1 | |||
| SBB 460 - 2000 | 87821020 | 600 | 2x 24-pin | TS8 | 1.5 | 464 | 100 | 1 | |||
| SBB 520 - 3000 | 87821030 | 1200 | 3x 24-pin | TS8 | 1.5 | 524 | 100 | 1 | |||
| SBB 660 - 3000 | 87821040 | 800 | 3x 24-pin | TS8 | 1.5 | 664 | 100 | 1 | |||
| SBB 860 - 5000 | 87821050 | 1000 | 5x 24-pin | TS8 | 1.5 | 864 | 100 | 1 | |||
| SBB-VX 440 | 87821011 | 1000 | 2x 24-pin | VX | 1.5 | 440 | 100 | 1 | Without VP, | ||
| SBB-VX 490 | 87821021 | 600 | 2x 24-pin | VX | 1.5 | 490 | 100 | 1 | Without VP, | ||
| SBB-VX 540 | 87821031 | 1200 | 3x 24-pin | VX | 1.5 | 540 | 100 | 1 | Without VP, | ||
| SBB-VX 690 | 87821041 | 800 | 3x 24-pin | VX | 1.5 | 690 | 100 | 1 | Without VP, | ||
Spare part: Locking plate | |||||||||||
| VP24 | 87821090 | 5 | suitable for KDL/E 24 | ||||||||
| VP/N 24 | 87821092 | 5 | suitable for KDP, KDL/C and KDL/D 24 | ||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87821092 87821092 EN_87821090.pdf | 884 Kbytes |
|
