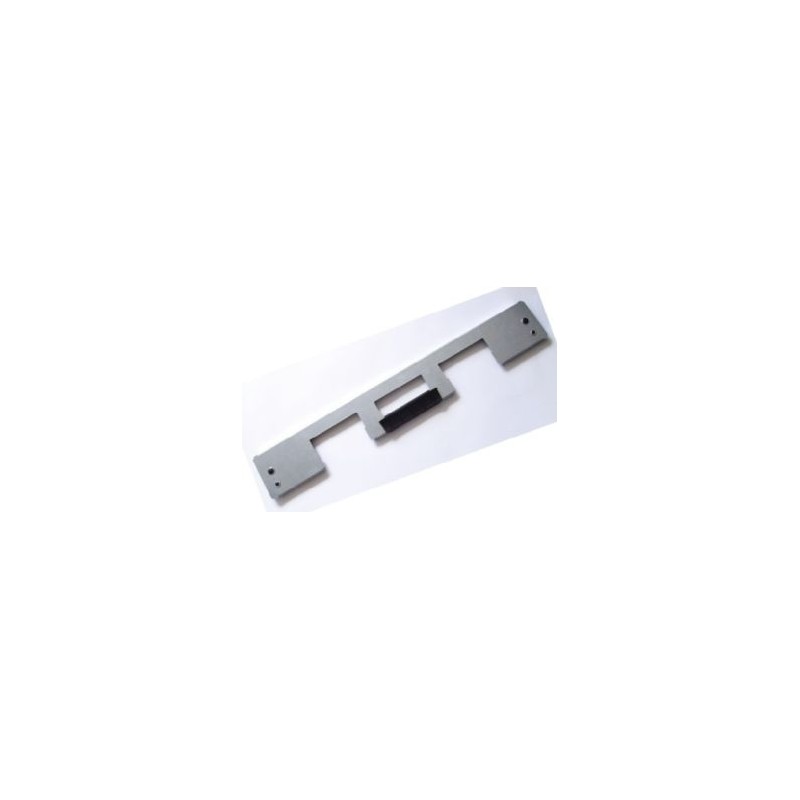

87821090 MURRPLASTIK Cable entry systems and holders Control cabinet floor plate, type SBB Replacement part:..
87821090
MURRPLASTIK
5
Cable entry systems and holders Control cabinet floor plate, type SBB Replacement part: Locking plates
VP 24, sw
Control cabinet floor plate type SBB
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The control cabinet floor plate can be installed in Rittal (type CM, TS8 and VX) control cabinets. Up to 5 cable entry systems can be installed.
The scope of delivery of the switch cabinet base plate (type SBB) includes the closure plates type VP 24 or VP/N 24. These are required to lock the floor sheeting into place.
The SBB-VX control cabinet base plate is supplied without closing plates.
Unnecessary cut-outs can be covered with the BP/H 24 blanking plate.
Protection category IP 54 when properly assembled as a system (control cabinet + floor plate)
Can be installed entirely retrospectively
Earthing points (M6 and M8) available on both side
-40°C – 125°C
Galvanised sheet steelPolyamide 6.6
V0
IP 54
| Type | Order No. | For control cabinet width mm | No. Holder slots | Cut-out | Plate thickness mm | A mm | B mm | MOQ qty. | Fussnote Variante 2 (unter Var) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
and M5 threads | |||||||||||
| SBB-M5 420-2000 | 87821012 | 1000 | 2x 24-pin | TS8 | 1.5 | 424 | 100 | 1 | |||
| SBB-M5 460-2000 | 87821022 | 600 | 2x 24-pin | TS8 | 1.5 | 464 | 100 | 1 | |||
| SBB-M5 520-3000 | 87821032 | 1200 | 3x 24-pin | TS8 | 1.5 | 524 | 100 | 1 | |||
| SBB-M5 660-3000 | 87821042 | 800 | 3x 24-pin | TS8 | 1.5 | 664 | 100 | 1 | |||
| SBB-VX-M5 440 | 87821013 | 1000 | 2x 24-pin | VX | 1.5 | 440 | 100 | 1 | Without VP, | ||
| SBB-VX-M5 490 | 87821023 | 600 | 2x 24-pin | VX | 1.5 | 490 | 100 | 1 | Without VP, | ||
| SBB-VX-M5 540 | 87821033 | 1200 | 3x 24-pin | VX | 1.5 | 540 | 100 | 1 | Without VP, | ||
| SBB-VX-M5 690 | 87821043 | 800 | 3x 24-pin | VX | 1.5 | 690 | 100 | 1 | Without VP, | ||
with through-hole | |||||||||||
| SBB 420 - 2000 | 87821010 | 1000 | 2x 24-pin | TS8 | 1.5 | 424 | 100 | 1 | |||
| SBB 460 - 2000 | 87821020 | 600 | 2x 24-pin | TS8 | 1.5 | 464 | 100 | 1 | |||
| SBB 520 - 3000 | 87821030 | 1200 | 3x 24-pin | TS8 | 1.5 | 524 | 100 | 1 | |||
| SBB 660 - 3000 | 87821040 | 800 | 3x 24-pin | TS8 | 1.5 | 664 | 100 | 1 | |||
| SBB 860 - 5000 | 87821050 | 1000 | 5x 24-pin | TS8 | 1.5 | 864 | 100 | 1 | |||
| SBB-VX 440 | 87821011 | 1000 | 2x 24-pin | VX | 1.5 | 440 | 100 | 1 | Without VP, | ||
| SBB-VX 490 | 87821021 | 600 | 2x 24-pin | VX | 1.5 | 490 | 100 | 1 | Without VP, | ||
| SBB-VX 540 | 87821031 | 1200 | 3x 24-pin | VX | 1.5 | 540 | 100 | 1 | Without VP, | ||
| SBB-VX 690 | 87821041 | 800 | 3x 24-pin | VX | 1.5 | 690 | 100 | 1 | Without VP, | ||
Spare part: Locking plate | |||||||||||
| VP24 | 87821090 | 5 | suitable for KDL/E 24 | ||||||||
| VP/N 24 | 87821092 | 5 | suitable for KDP, KDL/C and KDL/D 24 | ||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87821090 87821090 EN_87821090.pdf | 884 Kbytes |
|
