87664202 MURRPLASTIK Cable entry systems and holders Type KDP/EN cable entry plate, metal
87664202
MURRPLASTIK
Cable entry systems and holders Type KDP/EN cable entry plate, metal
cablequick ® KDP/EN-RA 120/59, Alu

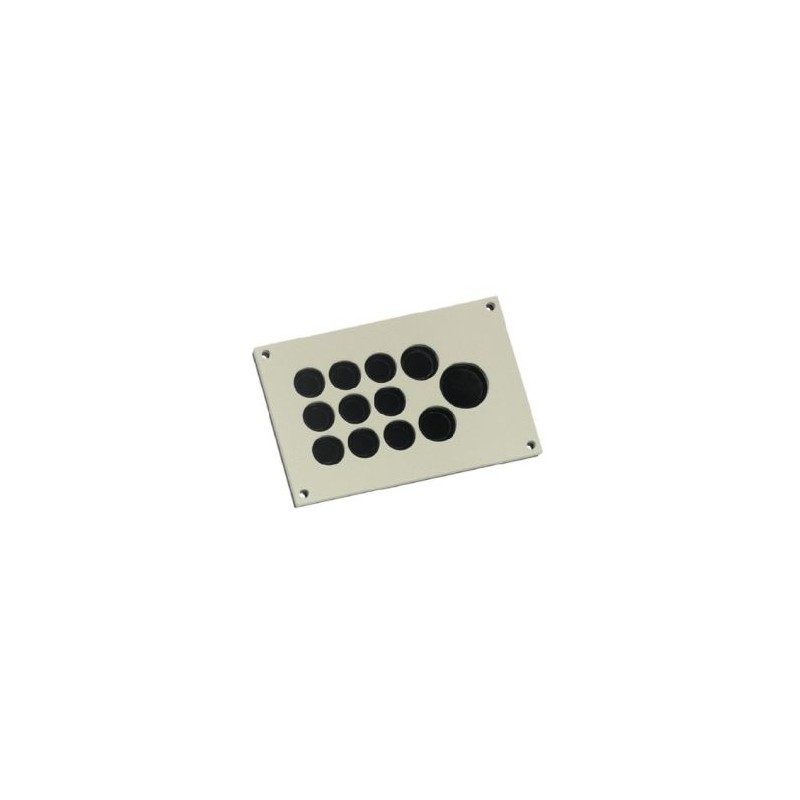

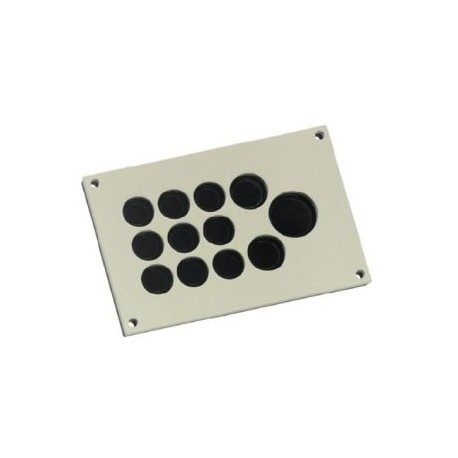

Type KDP/EN cable entry plate, metal
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲The KDP/EN metal cable entry plates are cable entry and retaining systems for cables and pneumatic hoses used in control cabinets or plant construction specifically in the railway industry. Wherever quick assembly, cable-protecting and high packing density are required, the cable insertion system is used.
The special benefits of the KDP/EN metal are:
Enormous time savings in assembly
High packing density
Protection category IP 65
Approved for railway technology (EN 45545-2 / 3x HL3)
- Other variants are available on request -
| Type | Order No. | Colour | No. Openings | Openings Quantity / Ø mm | MOQ qty. | A mm | B mm | a mm | b mm | c mm | d mm | e mm | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| cablequick ® KDP/EN 60/30, Alu | 87664201 | Lichtgrau | 30 |
| 1 | 148 | 60 | 110 | 46 | 65 | 16 | 5.5 | ||||||||||||||||||||||||||
| cablequick ® KDP/EN 120/59, Alu | 87664202 | Lichtgrau | 59 |
| 1 | 288 | 120 | 240 | 80 | 137 | 36 | 5.5 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87664202 87664202 EN_87664201.pdf | 306 Kbytes |
|
