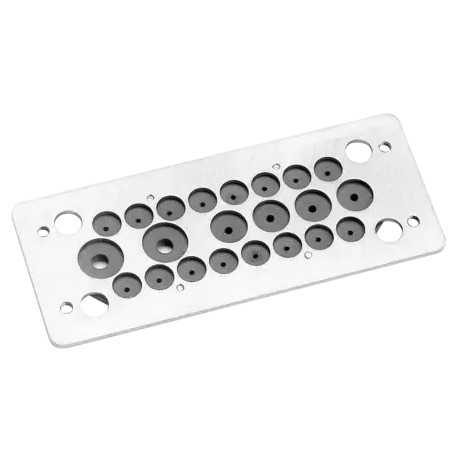

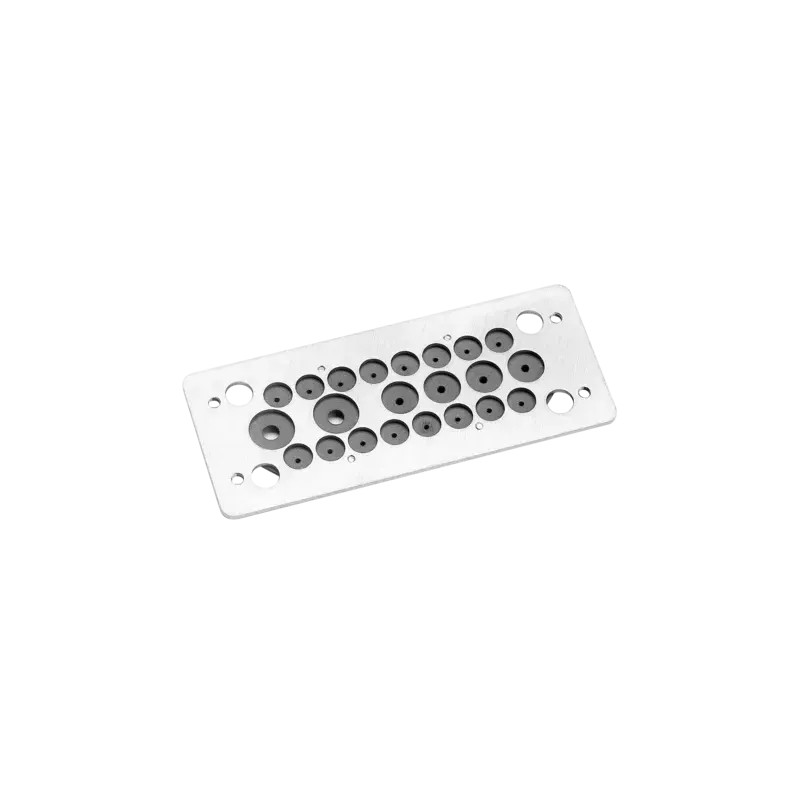

87664050 MURRPLASTIK Cable entry systems and holders Type KDP/N EMC Module cable entry plate
Reference: 87664050
Manufacturer: MURRPLASTIK
Description:
Cable entry systems and holders Type KDP/N EMC Module cable entry plate
KDP/N 24/17 EMV-module
Type KDP EMV Module cable entry plate
Categories:
- MURRPLASTIK > Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
- More Info
- Reviews
* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
The Murrplastik KDP 24 EMV module is designed to dissipate line and field induced interference. The KDP 24 EMV modules are used in conjunction with the cable entry plates type KDP/xx 24. In order to ensure optimum performance, the EMC module is assembled in combination with the KDP/N 24 cable entry plate. While the EMC module makes direct contact with the enclosure wall on the inside of the enclosure, the KDP/xx 24 cable entry plate provides mechanical protection against dust and liquids from the environment.
The special advantages of the KDP 24 EMV modules are:
Cable-friendly 360° shield contacting
Large contact area with short distance
Easy assembly
Compact and slim design
Visible contact area
Stainless steel construction
| Type | Order No. | Suitable for | MOQ qty. | ||
|---|---|---|---|---|---|
| KDP 24/11 EMV-Modul | 87664010 | KDP/xx 24/11 | 1 | ||
| KDP 24/12 EMV-Modul | 87664020 | KDP/xx 24/12 | 1 | ||
| KDP 24/13 EMV-Modul | 87664030 | KDP/xx 24/13 | 1 | ||
| KDP 24/14 EMV-Modul | 87664040 | KDP/xx 24/14 | 1 | ||
| KDP 24/17 EMV-Modul | 87664050 | KDP/xx 24/17 | 1 | ||
| KDP 24/17-1 EMV-Modul | 87664051 | KDP/xx 24/17-1 | 1 | ||
| KDP 24/22 EMV-Modul | 87664060 | KDP/xx 24/22 | 1 | ||
| KDP 24/23 EMV-Modul | 87664070 | KDP/xx 24/23 | 1 | ||
| KDP 24/29 EMV-Modul | 87664080 | KDP/xx 24/29 | 1 |
