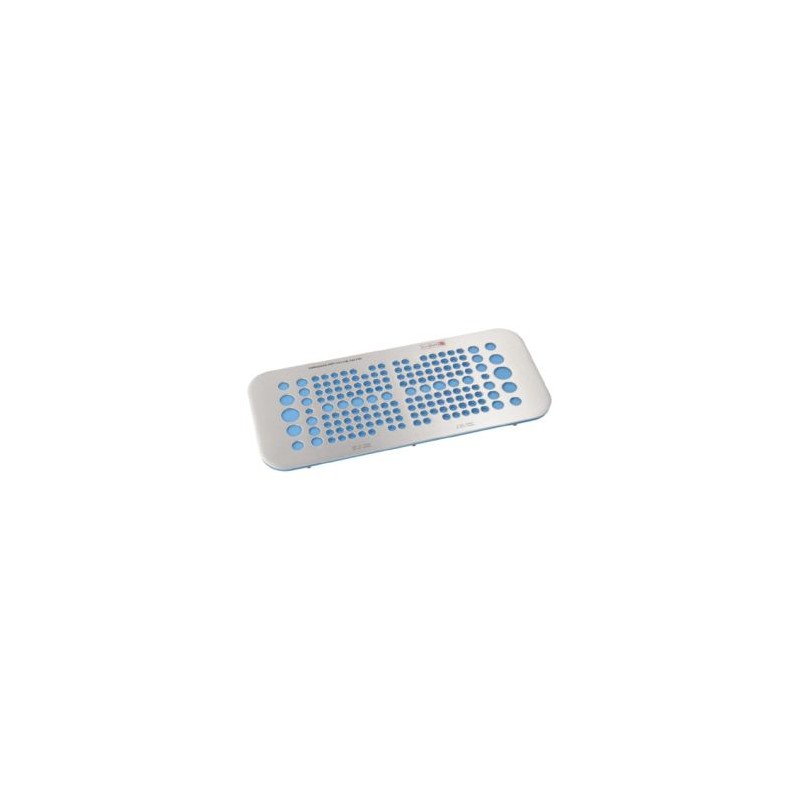

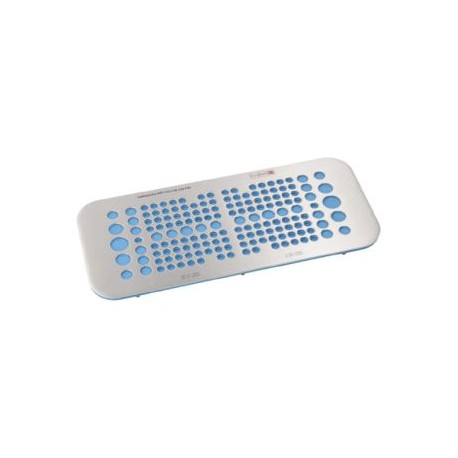

87663951 MURRPLASTIK Cable entry systems and holders cablequick® FDA Type 149 (149x339 mm)
87663951
MURRPLASTIK
Cable entry systems and holders cablequick® FDA Type 149 (149x339 mm)
cablequick ® KDP 149/158, V4A FDA
cablequick® FDA Type 149 (149x339 mm)
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Efficient connection technology for terminal boxes, control cabinets for tool-free introduction of actuators, sensors, measuring and control instrumentation, optoelectronic, pneumatic cables and drive technology into a control panel. KDPs of product group 149 can be fitted directly into the standard cut-outs of Rittal cabinets.
The FDA stainless steel version is particularly suitable for use in the food and pharmaceutical sectors. Integrated threaded bolts mean that no screws are visible from outside. Mounting set included in delivery.
V4A : 1.4571
FDA compliant
Rittal cut-out 4
-30°C – 90°C
EPDM
IP 65
| Type | Order No. | Colour | No. Openings | Openings No. Ø mm | MOQ qty. | A mm | B mm | a mm | b mm | c mm | d mm | e mm | g mm | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FDA cablequick ® KDP 149/158, V4A | 87663951 | Smoothed | 158 |
| 1 | 149 | 339 | 303 | 115 | 161.5 | 66.5 | 5 | 120 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87663951 87663951 EN_87663951.pdf | 568 Kbytes |
|
