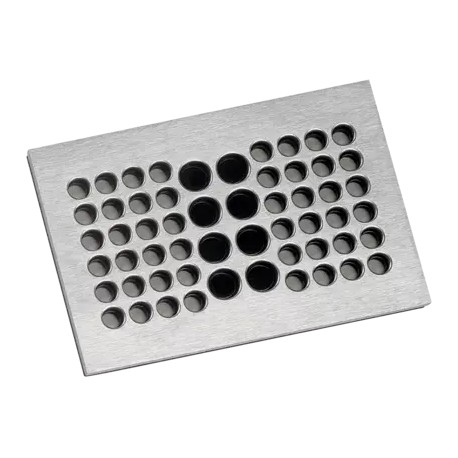

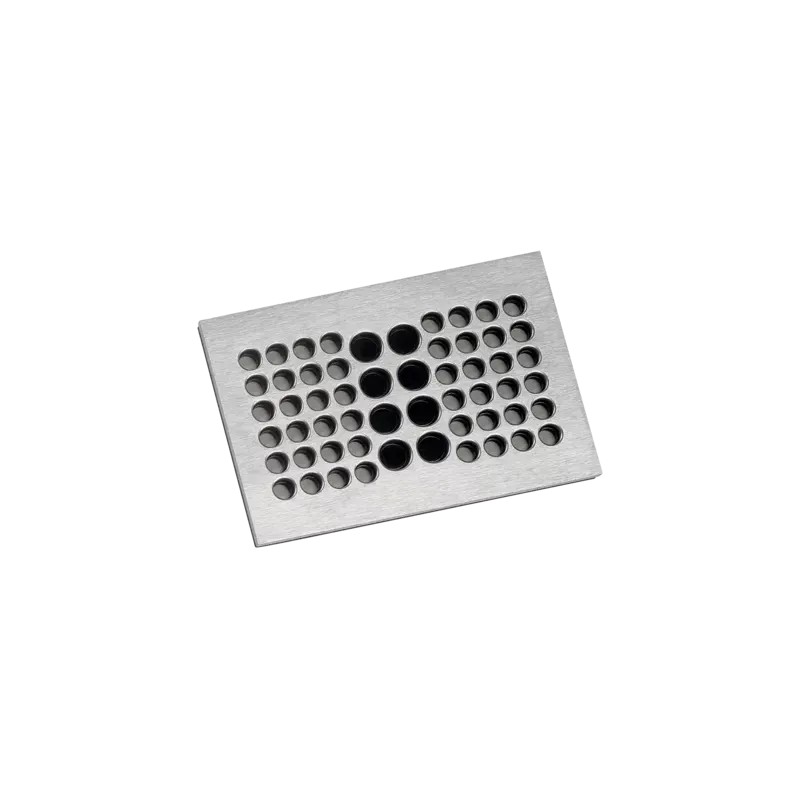

87663116 MURRPLASTIK Cable entry systems and holders cablequick® Type 100 (100x145 mm)
87663116
MURRPLASTIK
Cable entry systems and holders cablequick® Type 100 (100x145 mm)
cablequick ® KDP 100/6, V4A
KDP cablequick® Type 100 (100x145 mm)
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Efficient connection technology for terminal boxes, control cabinets for tool-free introduction of actuators, sensors, measuring and control instrumentation, optoelectronic, pneumatic cables and drive technology into a control panel. KDPs of the product group 100 fits into standard cut-outs for Rittal and Sarel cabinets when combined with adapter plates. These adapter plates can be configured individually.
The stainless steel version is particularly suitable for applications in the food and chemical industry. Integrated threaded bolts mean that no screws are visible from outside. Mounting set included in delivery.
V4A : 1.4571
ALU : 3.3535
ST : 1.0037
Labs free
-30°C – 90°C
NBR / EPDM
IP 65
CSA approval
UR approval
| Type | Order No. | Colour | No. Openings | Openings No. Ø mm | MOQ qty. | A mm | B mm | a mm | b mm | c mm | d mm | e mm | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KDP 100/6 V4A | 87663116 | Smoothed | 6 |
| 1 | 100 | 145 | 132 | 82 | 50 | 45 | 4.5 | |||||||||||||||||||||
| KDP 100/15 V4A | 87663120 | Smoothed | 15 |
| 1 | 100 | 145 | 132 | 82 | 50 | 45 | 4.5 | |||||||||||||||||||||
| KDP 100/18 V4A | 87663122 | Smoothed | 18 |
| 1 | 100 | 145 | 132 | 82 | 50 | 45 | 4.5 | |||||||||||||||||||||
| KDP 100/24 V4A | 87663124 | Smoothed | 24 |
| 1 | 100 | 145 | 132 | 82 | 50 | 45 | 4.5 | |||||||||||||||||||||
| KDP 100/30 V4A | 87663062 | Smoothed | 30 |
| 1 | 100 | 145 | 132 | 82 | 50 | 45 | 4.5 | |||||||||||||||||||||
| KDP 100/30B V4A | 87663063 | Smoothed | 30 |
| 1 | 100 | 145 | 132 | 82 | 50 | 45 | 4.5 | |||||||||||||||||||||
| KDP 100/40 V4A | 87663061 | Smoothed | 40 |
| 1 | 100 | 145 | 132 | 82 | 50 | 45 | 4.5 | |||||||||||||||||||||
| KDP 100/56 V4A | 87663060 | Smoothed | 56 |
| 1 | 100 | 145 | 132 | 82 | 50 | 45 | 4.5 | |||||||||||||||||||||
| KDP 100/56B V4A | 87663065 | Smoothed | 56 |
| 1 | 100 | 145 | 132 | 82 | 50 | 45 | 4.5 | |||||||||||||||||||||
| KDP 100/56C V4A | 87663067 | Smoothed | 56 |
| 1 | 100 | 145 | 132 | 82 | 50 | 45 | 4.5 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87663116 87663116 EN_87663060.pdf | 878 Kbytes |
|
