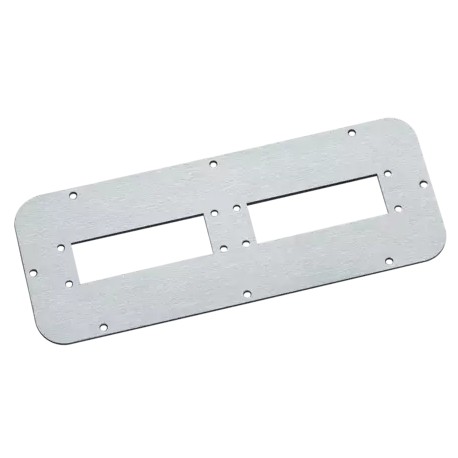

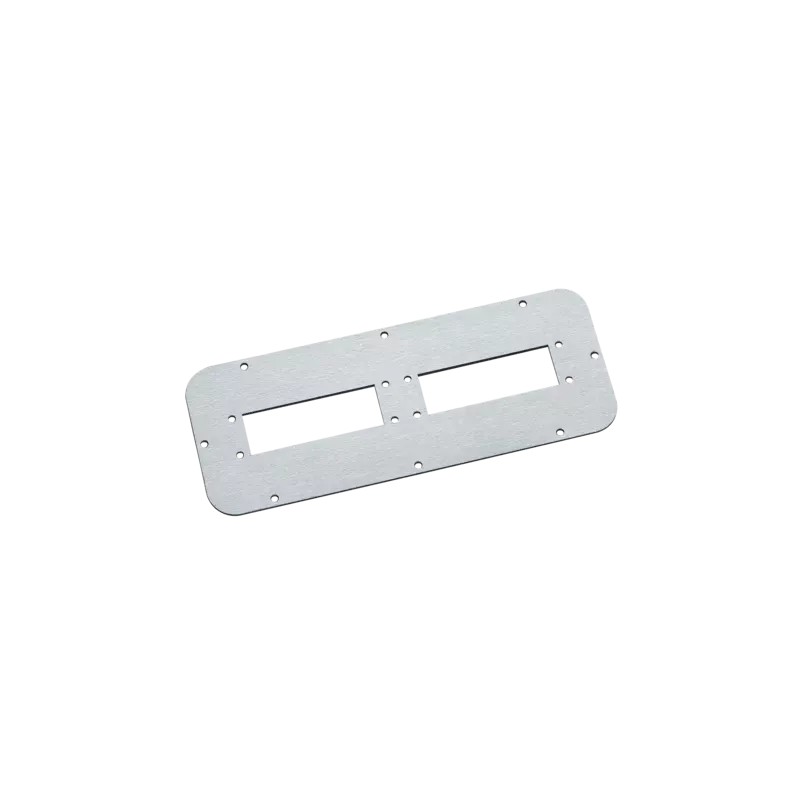

87663104 MURRPLASTIK Cable entry systems and holders Adapter plate Sarel For KDP/R
87663104
MURRPLASTIK
Cable entry systems and holders Adapter plate Sarel For KDP/R
KDP/R AP/SA-4
Adapter plate Sarel
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Adapter plate can be fitted directly into the standard cut-outs of Sarel cabinets. They serve to retain various Murrplastik cable entry systems. Unused adapter spaces can be closed off using blanking plates. A blade terminal L6.3 is available for earthing the adapter plate. Adapter plate without sealing. The seal is part of the cabinet accessories.
Stainless steel 1.4301(V2A)
GL approval
| Type | Order No. | Colour | Holder slots | Cut-out | Plate thickness mm | A mm | B mm | MOQ qty. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
with 24-pin cut-outs | ||||||||||||||||||
| KDP 24/AP/SA/2+0 | 87663102 | Smoothed |
| 515X4 | 2 | 345 | 130 | 1 | ||||||||||
| KDP 24/AP/SA/2+4 | 87663112 | Smoothed |
| 515X5 | 2 | 445 | 130 | 1 | ||||||||||
| KDP 24/AP/SA/3+2 | 87663108 | Smoothed |
| 515X6 | 2 | 545 | 130 | 1 | ||||||||||
| KDP 24/AP/SA/5+4 | 87663100 | Smoothed |
| 515X7 | 2 | 495 | 220 | 1 | ||||||||||
For metal KDP | ||||||||||||||||||
| KDP AP/SA/130/100/2 | 87663130 | Smoothed |
| 515X4 | 2.5 | 345 | 130 | 1 | ||||||||||
| KDP AP/SA/130/100/2+4 | 87663128 | Smoothed |
| 515X5 | 2.5 | 445 | 130 | 1 | ||||||||||
| KDP AP/SA/130/100/3+2 | 87663126 | Smoothed |
| 515X6 | 2.5 | 545 | 130 | 1 | ||||||||||
For KDP/R | ||||||||||||||||||
| KDP/R AP/SA-1 | 87663106 | Smoothed |
| 515X6 | 2 | 545 | 130 | 1 | ||||||||||
| KDP/R AP/SA-2 | 87663110 | Smoothed |
| 515X5 | 2 | 445 | 130 | 1 | ||||||||||
| KDP/R AP/SA-3 | 87663114 | Smoothed |
| 515X4 | 2 | 345 | 130 | 1 | ||||||||||
| KDP/R AP/SA-4 | 87663104 | Smoothed |
| 515X3 | 2 | 245 | 130 | 1 | ||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87663104 87663104 EN_87663100.pdf | 409 Kbytes |
|
