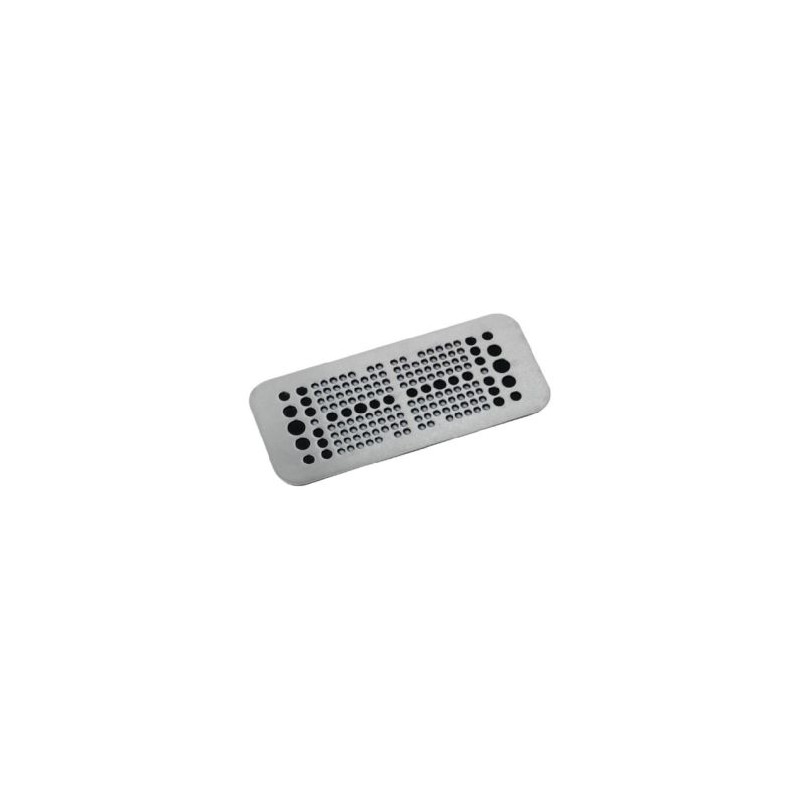

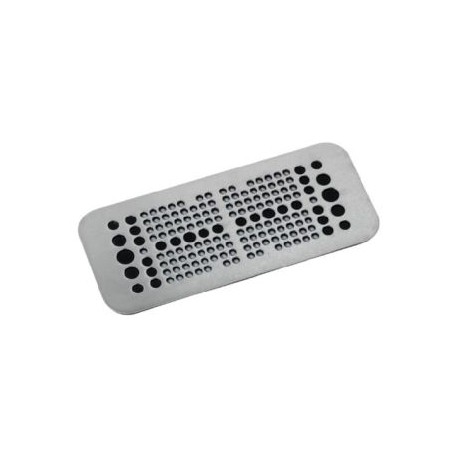

87663097 MURRPLASTIK Cable entry systems and holders cablequick® Type 149 (149x339 mm)
87663097
MURRPLASTIK
Cable entry systems and holders cablequick® Type 149 (149x339 mm)
cablequick ® KDP 149/56, Alu
cablequick® Type 149 (149x339 mm)
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Efficient connection technology for terminal boxes, control cabinets for tool-free introduction of actuators, sensors, measuring and control instrumentation, optoelectronic, pneumatic cables and drive technology into a control panel. KDPs of product group 149 can be fitted directly into the standard cut-outs of Rittal cabinets.
The stainless steel version is particularly suitable for applications in the food and chemical industry. Integrated threaded bolts mean that no screws are visible from outside. Mounting set included in delivery.
V4A : 1.4571
ALU : 3.3535
ST : 1.0037
Rittal cut-out 4
Labs free
-30°C – 90°C
NBR / EPDM
IP 65
CSA approval
UR approval
| Type | Order No. | Colour | No. Openings | Openings No. Ø mm | MOQ qty. | A mm | B mm | a mm | b mm | c mm | d mm | e mm | g mm | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KDP 149/158, Alu | 87663089 | Lichtgrau | 158 |
| 1 | 149 | 339 | 303 | 115 | 161.5 | 66.5 | 5 | 120 | ||||||||||||||||||||||||||
| KDP 149/56, Alu | 87663097 | Lichtgrau | 56 |
| 1 | 149 | 339 | 303 | 115 | 161.5 | 66.5 | 5 | 120 | ||||||||||||||||||||||||||
| KDP 149/78 ST | 87663771 | Lichtgrau | 78 |
| 1 | 149 | 339 | 303 | 115 | 161.5 | 66.5 | 5 | 120 | ||||||||||||||||||||||||||
| KDP 149/56 V4A | 87663086 | Smoothed | 56 |
| 1 | 149 | 339 | 303 | 115 | 161.5 | 66.5 | 5 | 120 | ||||||||||||||||||||||||||
| KDP 149/158 V4A | 87663068 | Smoothed | 158 |
| 1 | 149 | 339 | 303 | 115 | 161.5 | 66.5 | 5 | 120 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87663097 87663097 EN_87663097.pdf | 893 Kbytes |
|
