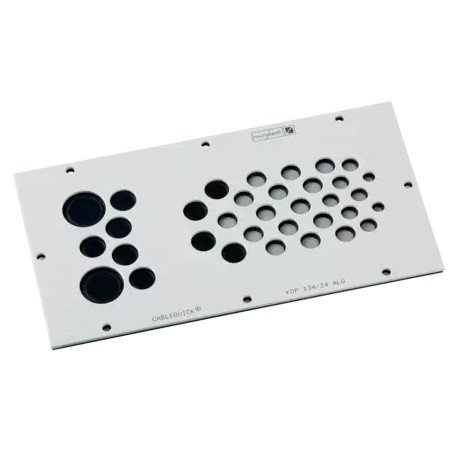

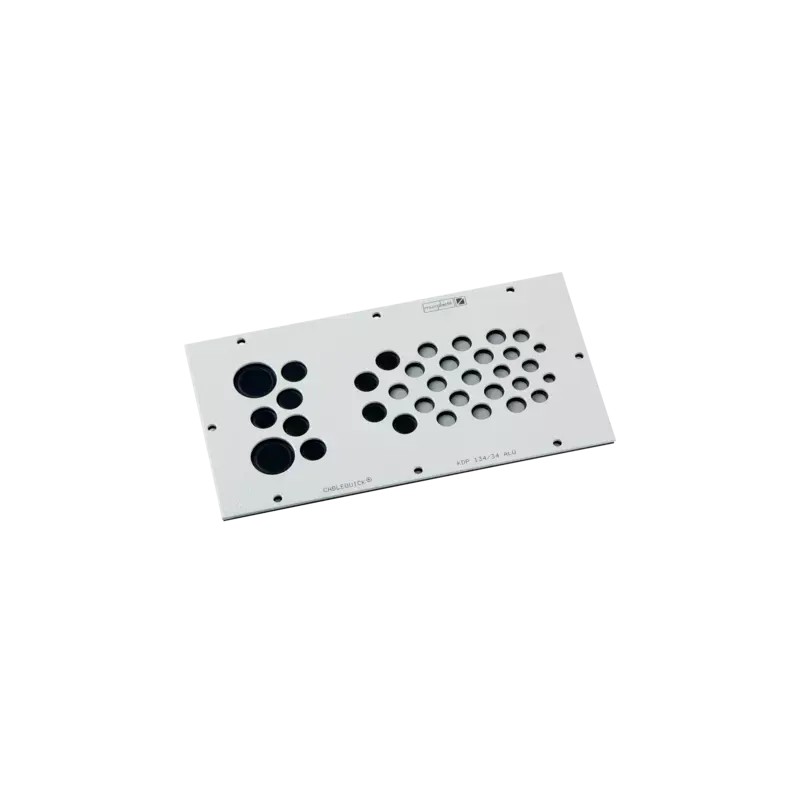

87663024 MURRPLASTIK Cable entry systems and holders cablequick® Type 134 (134x254 mm)
87663024
MURRPLASTIK
Cable entry systems and holders cablequick® Type 134 (134x254 mm)
cablequick ® KDP 134/34, Alu
cablequick® Type 134 (134x254 mm)
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Efficient connection technology for terminal boxes, control cabinets for tool-free introduction of actuators, sensors, measuring and control instrumentation, optoelectronic, pneumatic cables and drive technology into a control panel.
The stainless steel version is particularly suitable for application in the food and chemical areas. Integrated threaded bolts mean that no screws are visible from outside. Mounting set included in delivery.
V4A : 1.4571
ALU : 3.3535
ST : 1.0037
Labs free
-30°C – 90°C
NBR / EPDM
IP 65
CSA approval
UR approval
| Type | Order No. | Colour | No. Openings | Openings No. Ø mm | MOQ qty. | A mm | B mm | a mm | b mm | c mm | d mm | e mm | g mm | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KDP 134/34 ALU | 87663024 | Lichtgrau | 34 |
| 1 | 134 | 254 | 231 | 111 | 90.5 | 61 | 5.5 | 121 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87663024 87663024 EN_87663024.pdf | 800 Kbytes |
|
