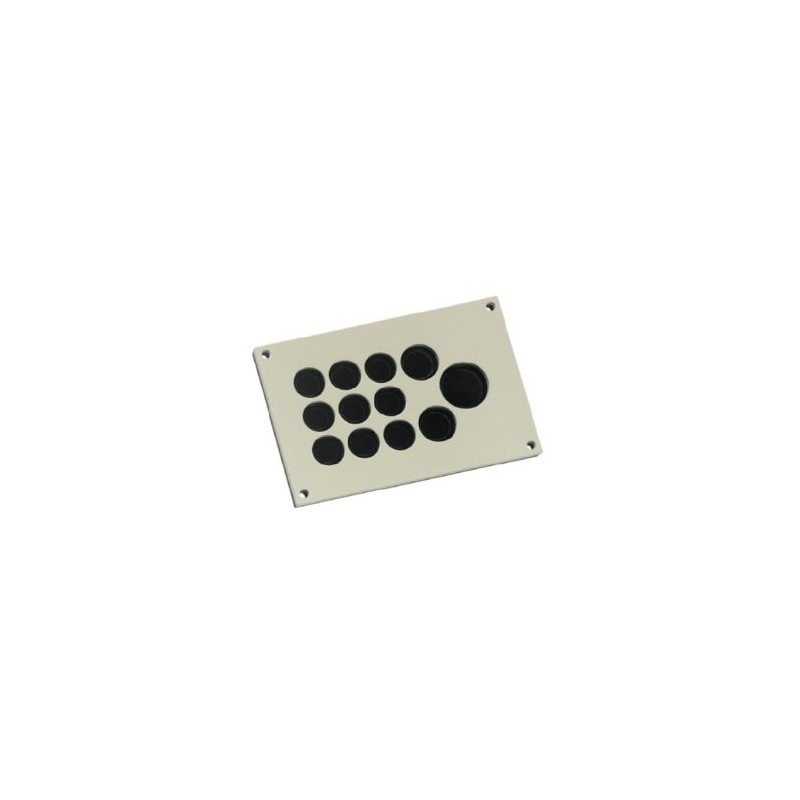

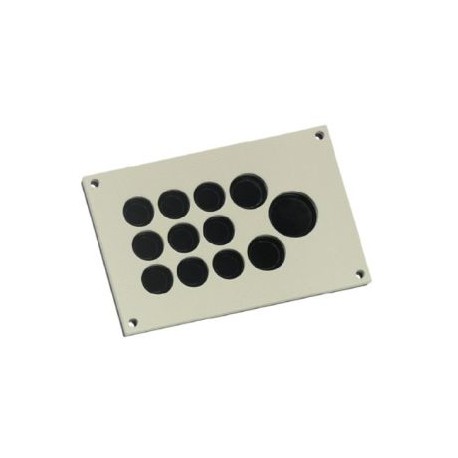

87663014 MURRPLASTIK Cable entry systems and holders cablequick® Type 105 (105x155 mm)
87663014
MURRPLASTIK
Cable entry systems and holders cablequick® Type 105 (105x155 mm)
cablequick ® KDP 105/15, Alu
cablequick® Type 105 (105x155 mm)
Wall plates and cable glands
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲Efficient connection technology for terminal boxes, control cabinets for tool-free introduction of actuators, sensors, measuring and control instrumentation, optoelectronic, pneumatic cables and drive technology into a control panel. KDPs of the product group 105 fits into standard cut-outs for Rittal and Sarel cabinets when combined with adapter plates. These adapter plates can be configured individually.
The stainless steel version is particularly suitable for applications in the food and chemical industry. Integrated threaded bolts mean that no screws are visible from outside. Mounting set included in delivery.
V4A : 1.4571
ALU : 3.3535
ST : 1.0037
Labs free
-30°C – 90°C
NBR / EPDM
IP 65
CSA approval
UR approval
| Type | Order No. | Colour | No. Openings | Openings No. Ø mm | MOQ qty. | A mm | B mm | a mm | b mm | c mm | d mm | e mm | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KDP 105/12 ALU | 87663056 | Lichtgrau | 12 |
| 1 | 105 | 155 | 132 | 82 | 71.5 | 46.5 | 5.5 | ||||||||||||||||
| KDP 105/15 ALU | 87663014 | Lichtgrau | 15 |
| 1 | 105 | 155 | 132 | 82 | 71.5 | 46.5 | 5.5 | ||||||||||||||||
| KDP 105/32 ALU | 87663010 | Lichtgrau | 32 |
| 1 | 105 | 155 | 132 | 82 | 71.5 | 46.5 | 5.5 | ||||||||||||||||
| KDP 105/12 V4A | 87663057 | Smoothed | 12 |
| 1 | 105 | 155 | 132 | 82 | 71.5 | 46.5 | 5.5 | ||||||||||||||||
| KDP 105/15 V4A | 87663016 | Smoothed | 15 |
| 1 | 105 | 155 | 132 | 82 | 71.5 | 46.5 | 5.5 | ||||||||||||||||
| KDP 105/32 V4A | 87663012 | Smoothed | 32 |
| 1 | 105 | 155 | 132 | 82 | 71.5 | 46.5 | 5.5 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CABLE ENTRY EN.pdf | 7 Mbytes |
|
| 87663014 87663014 EN_87663056.pdf | 820 Kbytes |
|
